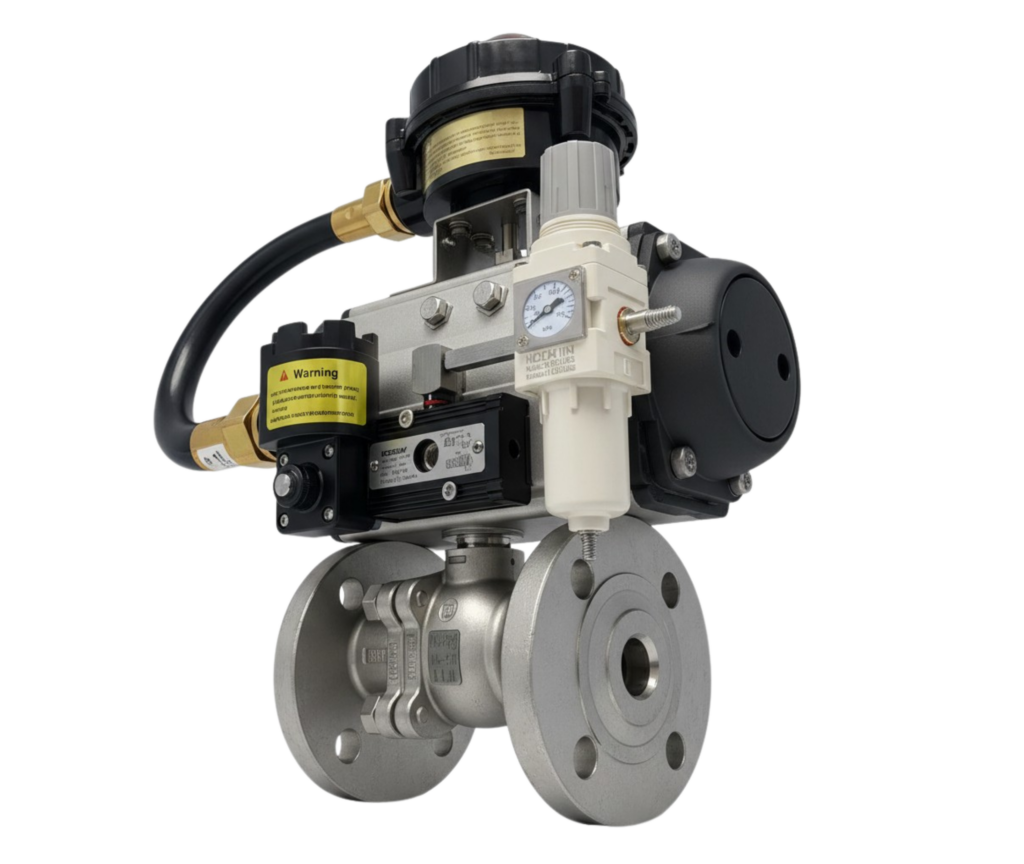

Pneumatic SS316L Flanged Ball Valve
INTEGRATED 5/2 SOLENOID · PLC-READY · PRE-WIRED & PRE-PIPED
The Q647F-16P-SOL is a fully integrated pneumatic ball valve
assembly delivering complete electrical-to-pneumatic signal
conversion within a single pre-wired and pre-piped package.
Unlike standard pneumatic assemblies that require an external
solenoid valve or pneumatic control cabinet, this unit
incorporates a 5/2-way solenoid valve directly into the air circuit,
allowing a PLC or DCS to drive the actuator using a simple 24
VDC or 220 VAC output signal with no additional pneumatic
switching hardware
| Q647F-16P-SOL · ISO 5211 · PN16 / Class 15 | |
|---|---|
| Mounting Standard | ISO 5211 |
| Pressure Rating | PN16 / Class 150 |
| Nominal Size | DN25 – DN200 |
| Body Material | CF8M (SS316L) |
Sales team responds within 24 hours
— Full Specifications
Pneumatic SS316L Flanged Ball Valve - Parameter Table
| PARAMETER | SPECIFICATION |
|---|---|
| Body Material | Stainless Steel CF8M (SS316L) |
| Ball / Stem Material | SS316L Polished Ball / SS316 Stem |
| Seat / Seal Material | PTFE (Polytetrafluoroethylene) |
| Nominal Size (DN) | DN25 — DN200 (1" — 8") |
| Pressure Rating | PN16 / Class 150 |
| Max. Working Pressure | 1.6 MPa (16 Bar) |
| Working Temperature | -20 °C to +200 °C (-4 °F to +392 °F) |
| Body Design | 2-Piece Flanged End |
| Port Type | Full Bore (Full Port) |
| Connection Standard | GB / ASME B16.5 / DIN |
| Flange Bolt Material | SS304 Stainless Steel |
| Leakage Class | Zero Leakage / ANSI Class VI |
| Flow Direction | Bidirectional |
| Applicable Standard | GB/T 12237 / API 608 / ASME B16.34 |
Our Production Process
1. Casting
2. Machining
3. Testing
4. Loading
Inquiry Form - Quick Access
· Product documentation
Download Bautu Valve Documentation
Free · Instant
This Product Spec Sheet
Single-page datasheet for Pneumatic SS316L Flanged Ball Valve.
- Full parameter table
- Dimensional drawing
- Materials & standards list
- Ordering code guide
Full Catalog
Complete Product Catalog
— WHY bAUTU
Why Specify This Valve from Bautu
Six Pre-Matched Components in One Package

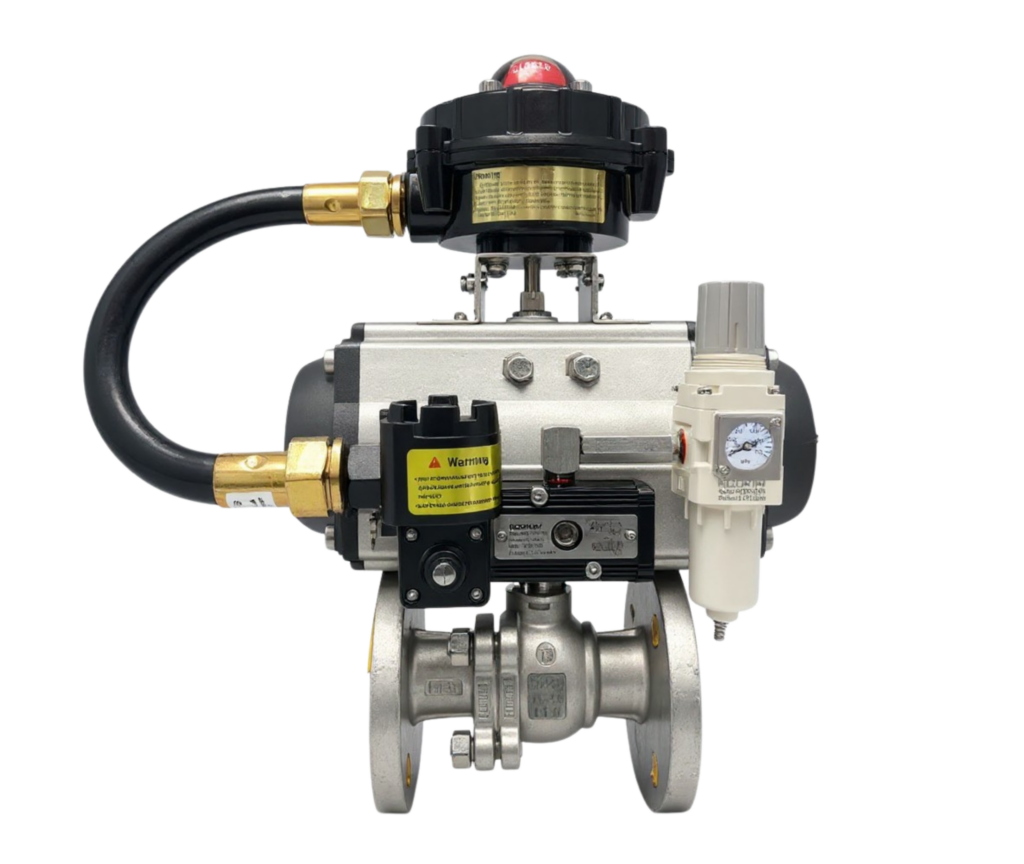

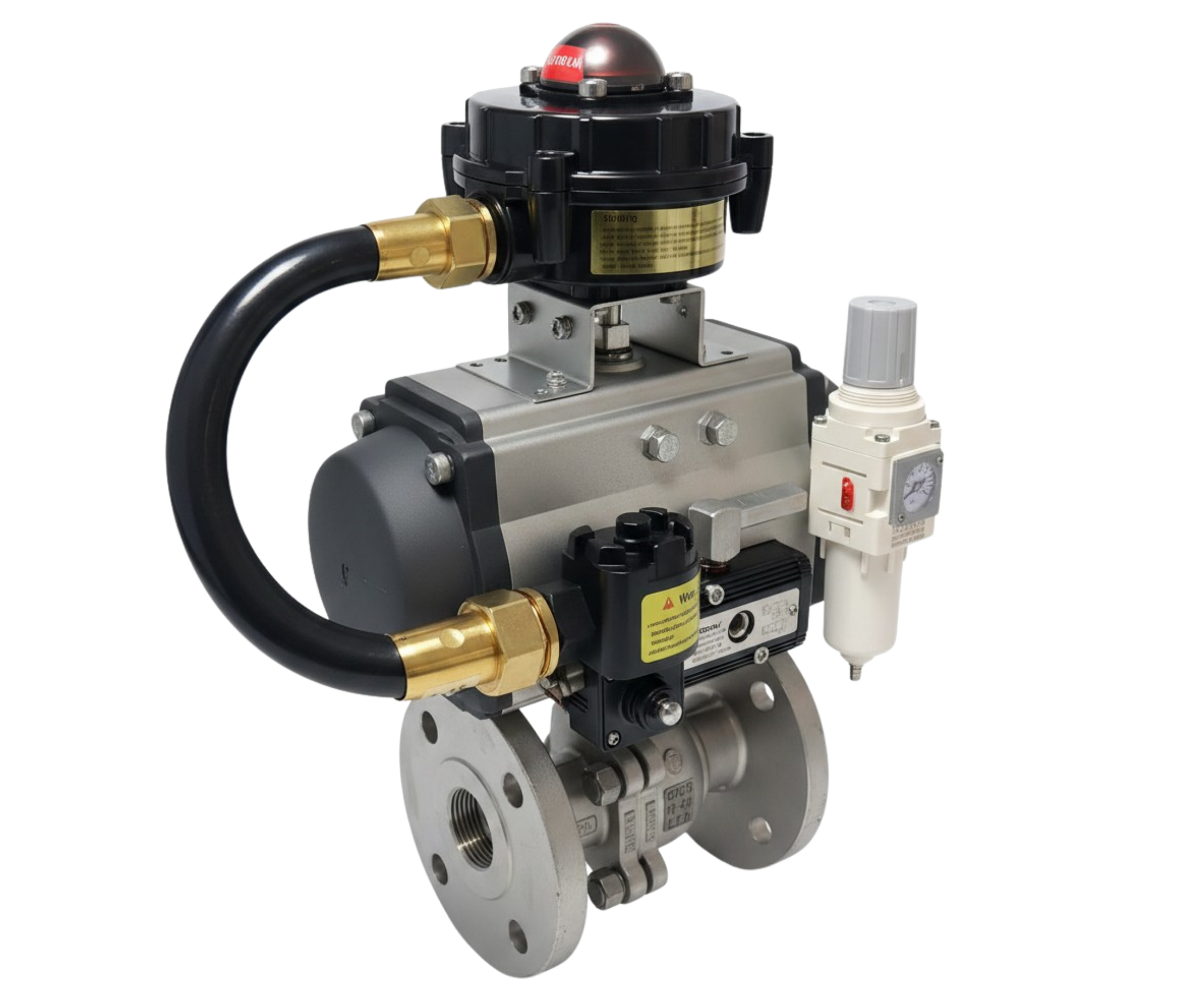

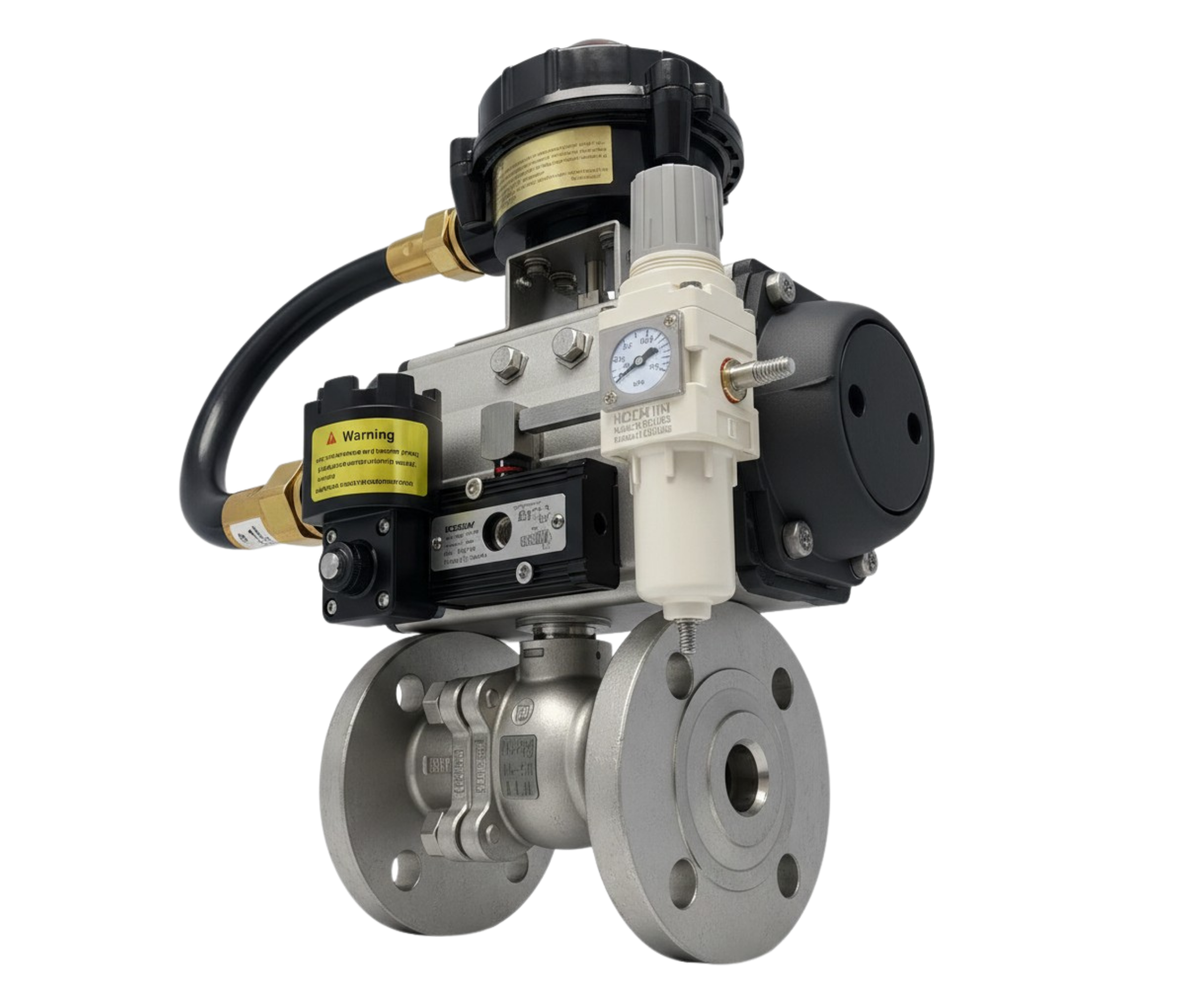

The assembly comprises six purpose-matched components: a 2-piece full-bore CF8S (SS316L) flanged ball valve; a black and-yellow anodised aluminium rack-and-pinion pneumatic actuator (double-acting or spring-return); a transparent dome-top limit switch indicator with red rotating position cap; a 5/2-way solenoid valve with DIN 43650-A connector and LED indicator; an inline filter-regulator with pressure gauge; and a rigid galvanised carbon-steel mounting bracket.
Factory-Assembled, Wired & Pressure-Tested
All components are factory-assembled, air-piped, and electrically wired. The unit is pressure-tested prior to shipment and arrives ready for immediate installation with a single compressed-air connection and a single electrical cable. This design eliminates field assembly errors, reduces installation time, and ensures consistent actuator performance across the operating life of the valve.
— KEY FEATURES
— FAQ
Frequently Asked Questions
What is a pneumatic actuated ball valve, and how does it work?
A pneumatic actuated ball valve combines a standard ball valve body with a pneumatic actuator — a device powered by compressed air (typically 4–7 bar) that automatically rotates the valve ball 90° to open or close the flow path. This eliminates the need for manual operation, making it ideal for remote control, automated process systems, and high-cycle applications where valves must open and close frequently or at precise intervals. Bautu's pneumatic actuated flanged ball valves are available in double-acting (air-to-open, air-to-close) and spring-return (fail-safe open or fail-safe closed) configurations, with optional solenoid valves, limit switches, and positioners for full automation integration.
Why choose a stainless steel body for a pneumatic actuated ball valve?
Stainless steel (CF8M / 316SS) is the material of choice when the pipeline handles corrosive, hygienic, or high-purity media where carbon steel would contaminate the product or corrode prematurely. Common applications include food and beverage processing, pharmaceutical manufacturing, chemical dosing systems, seawater cooling circuits, and marine installations. Compared to carbon steel WCB, stainless steel offers superior resistance to chlorides, acids, and oxidizing environments, and meets hygiene standards required in clean-in-place (CIP) systems. Bautu's stainless steel pneumatic ball valves use CF8M bodies with 316SS balls and stems, ensuring full corrosion resistance throughout the wetted flow path.
What is the standard lead time, and can Bautu supply custom actuator packages?
Standard pneumatic actuated stainless steel flanged ball valves are delivered in 3–5 weeks from order confirmation, including actuator assembly and factory function testing. Bautu supports fully customized actuator packages including solenoid valve selection (24VDC, 110VAC, 220VAC), limit switch boxes for open/close position feedback, positioners for partial-stroke control, and Ex-rated (ATEX/IECEx) components for hazardous area installations. All assemblies are tested for air-tightness and valve operation before shipment. Submit your process conditions and control requirements for a complete valve-actuator package quotation within 24 hours.
