API 600 Flanged Gate Valve — Bolted Bonnet, Handwheel

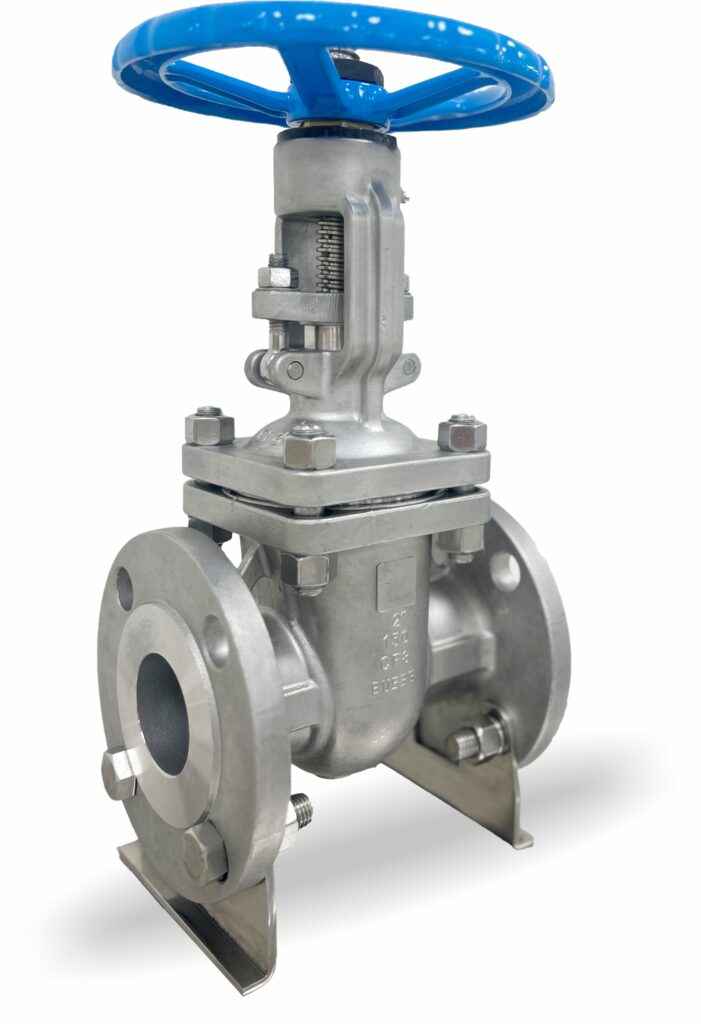

Flanged wedge gate valve with a rising stem, bolted bonnet and handwheel, for on/off isolation in oil, gas, water and process lines. Class 150, 300 and 600, NPS 2″ and 2½″.
- Bodies cast in our own foundry, traceable to the heat number
- Every valve shell and seat tested per API 598, test report in every shipment
- Standard sizes ship in 15–20 days
An engineer replies within 24 hours. Send size, class, material and quantity.
Specifications
Technical Data
| Design standard | API 600 |
| Face-to-face | ASME B16.10 |
| Flanges | ASME B16.5, raised face |
| Size range | NPS 2″ and 2½″ (DN50, DN65) |
| Pressure class | Class 150 / 300 / 600 |
| Body material | WCB (A216) · CF8 (A351) · CF3M (A351) |
| Seating | Metal-to-metal |
| Packing | Graphite |
| Operation | Handwheel |
| Testing | API 598 — every valve |
Application
Where It Is Used
For oil, gas and process lines built to ASME standards, where the valve runs fully open or fully closed.
- Oil and gas plant and terminal piping
- Refinery and chemical process lines
- Water and utility lines
- Projects specified to API / ASME

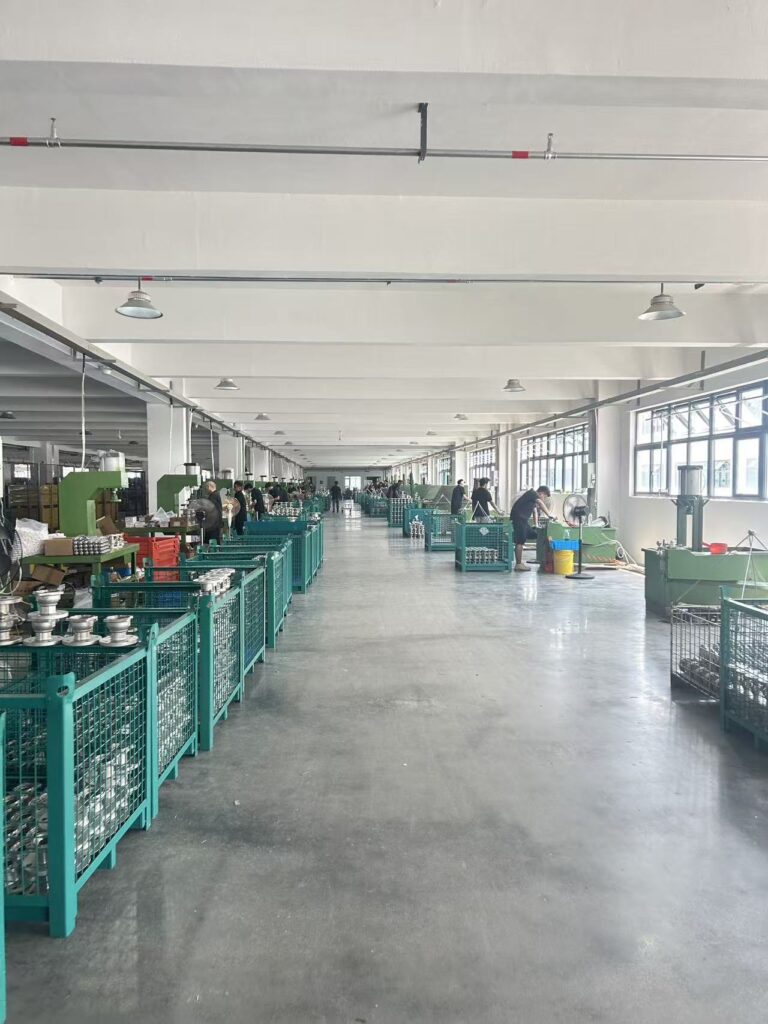

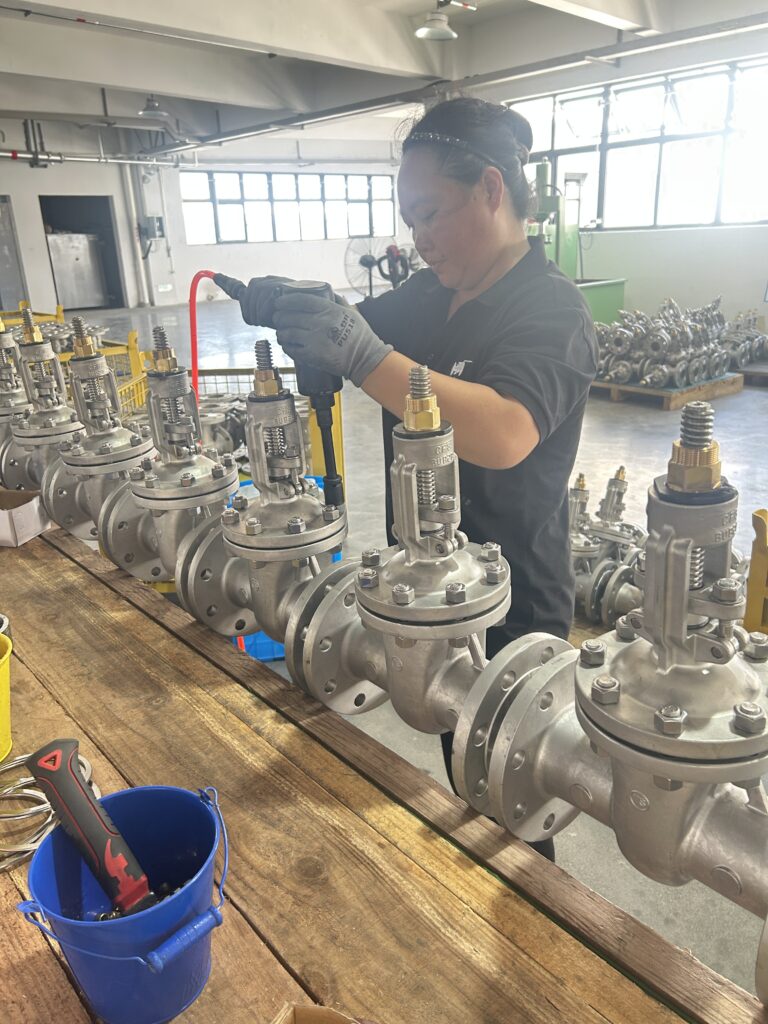

ASSEMBLY HALL · WENZHOUConstruction
Parts & Materials

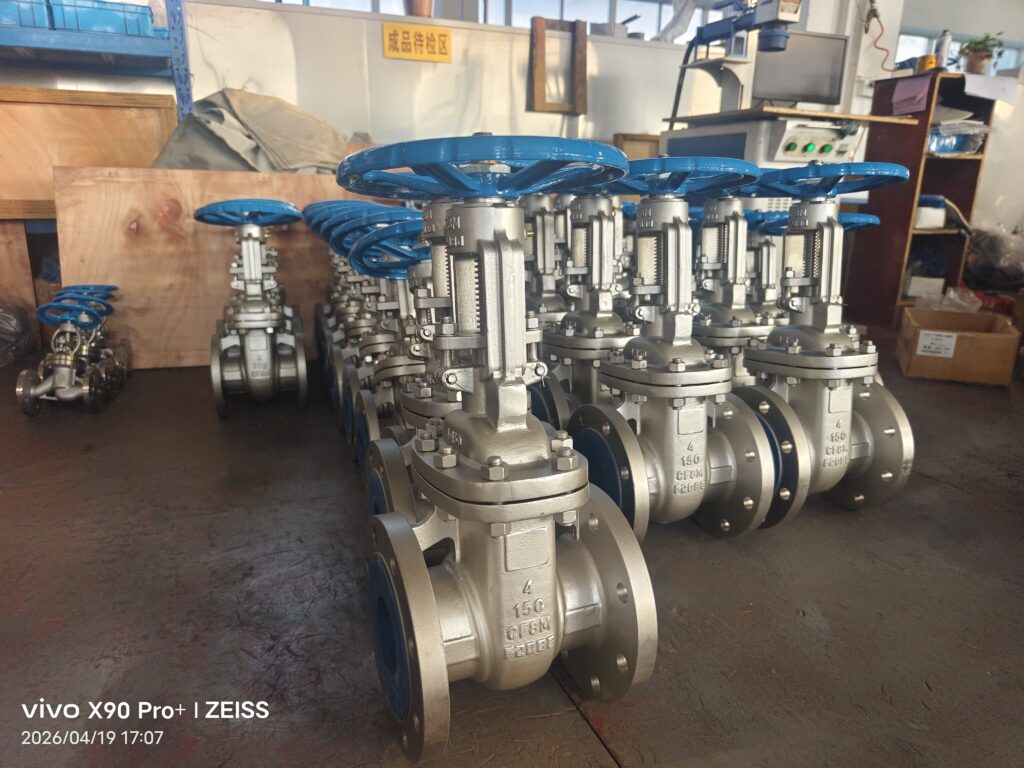

Stainless steel version. Every body casting is marked with size, class and material.
| Part | CF8 valve | CF3M valve |
|---|---|---|
| Body / Bonnet / Wedge | A351 CF8 | A351 CF3M |
| Stem | A182 F304 | A182 F316 |
| Stem nut | A182 F304 | A182 F316 |
| Bonnet gasket | SS304 + graphite | SS316L + graphite |
| Stem packing | Graphite | Graphite |
| Studs / nuts | A193 B8 / A194 8 | A193 B8 / A194 8 |
| Handwheel | Ductile iron | Ductile iron |
Dimensions
Dimensions (mm)
| NPS | DN | L | D | D1 | D2 | T | f | n-Ød |
|---|---|---|---|---|---|---|---|---|
| 2″ | 50 | 178 | 150 | 120.7 | 91.9 | 19.5 | 2 | 4-Ø19 |
| 2½″ | 65 | 190 | 180 | 139.7 | 105 | 22.7 | 2 | 4-Ø19 |
Class 150 dimensions shown; Class 300 and 600 drawings are sent with your quotation. L = face-to-face (ASME B16.10) · D = flange O.D. · D1 = bolt circle · D2 = raised face O.D. · T = flange thickness · f = raised face height · n-Ød = bolt holes. Flanges to ASME B16.5. Height and handwheel size are on the drawing sent with your quotation.

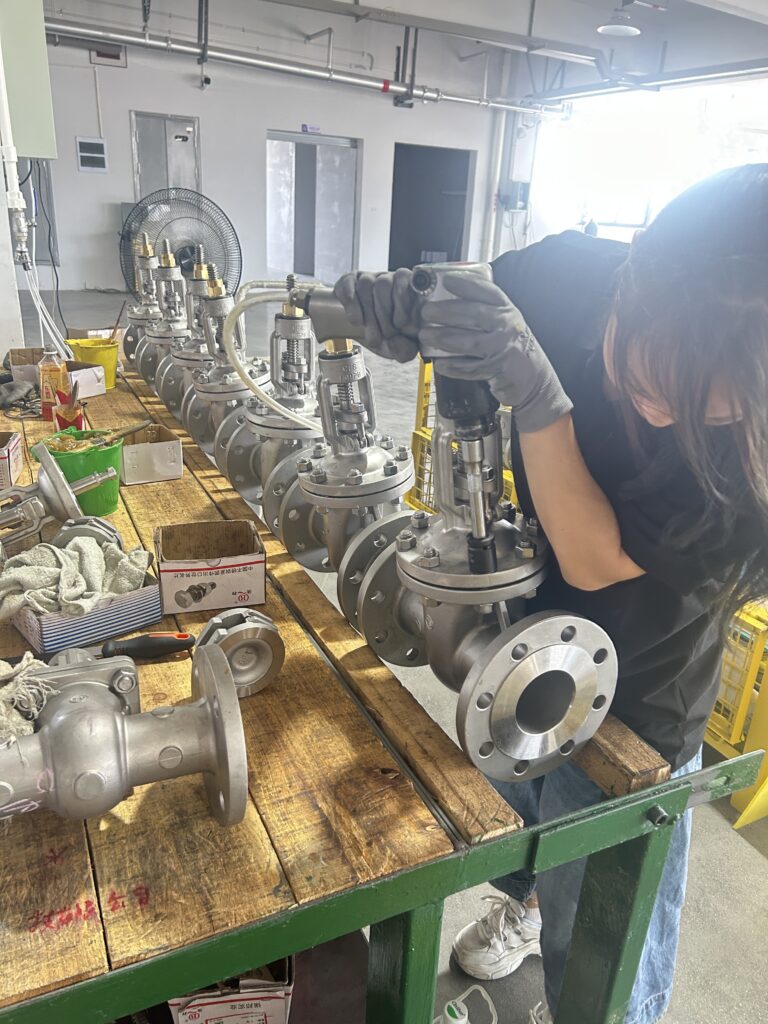

ASSEMBLY BENCHChecked before packing
Face-to-face and flange dimensions are checked against ASME B16.10 and B16.5 before packing. Each valve gets a QC tag with model, size, class and inspector.
Pressure rating
Max. Working Pressure at 38 °C
| Body material | Class 150 (bar) | Class 300 (bar) | Class 600 (bar) |
|---|---|---|---|
| WCB | 19.6 | 51.1 | 102.1 |
| CF8 | 19.0 | 49.6 | 99.3 |
| CF3M | 15.9 | 41.4 | 82.7 |
Body pressure–temperature ratings per ASME B16.34 for the body material.
Testing

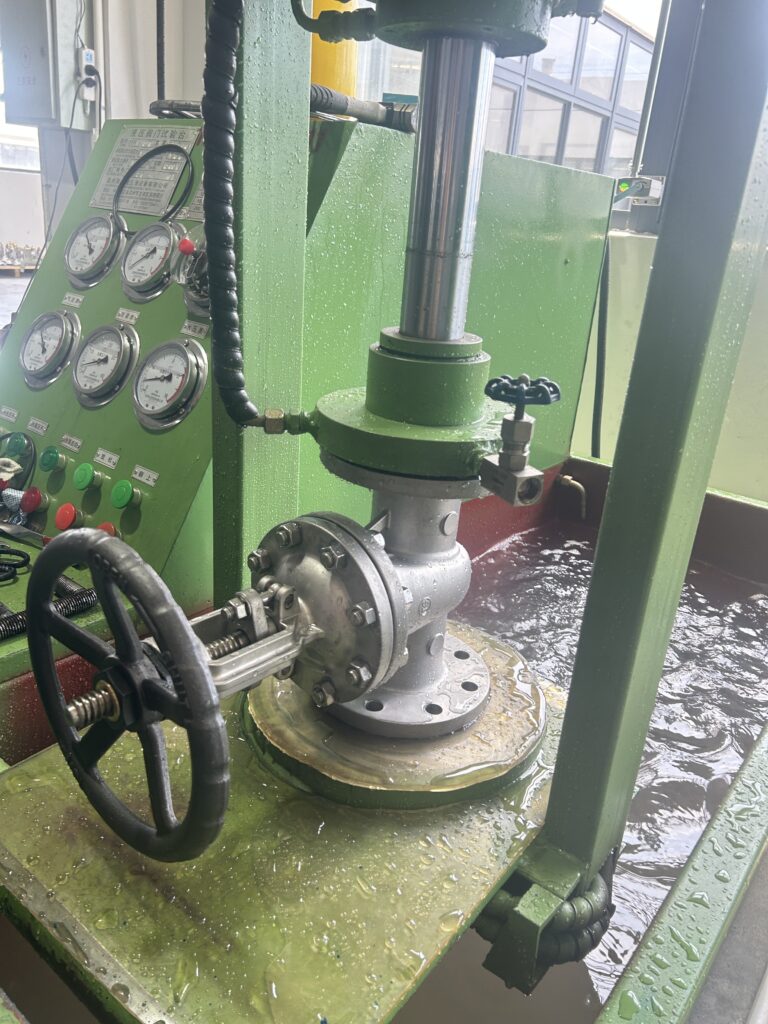

API 598 Test on Every Valve
| Test | Pressure |
|---|---|
| Shell test (water), Class 150 | 3.0 MPa |
| Seat test (water), Class 150 | 2.2 MPa |
| Seat test (air) | 0.6 MPa |
Class 150 test pressures per API 598; Class 300 and 600 test pressures and the actual values for each valve are on the test report.

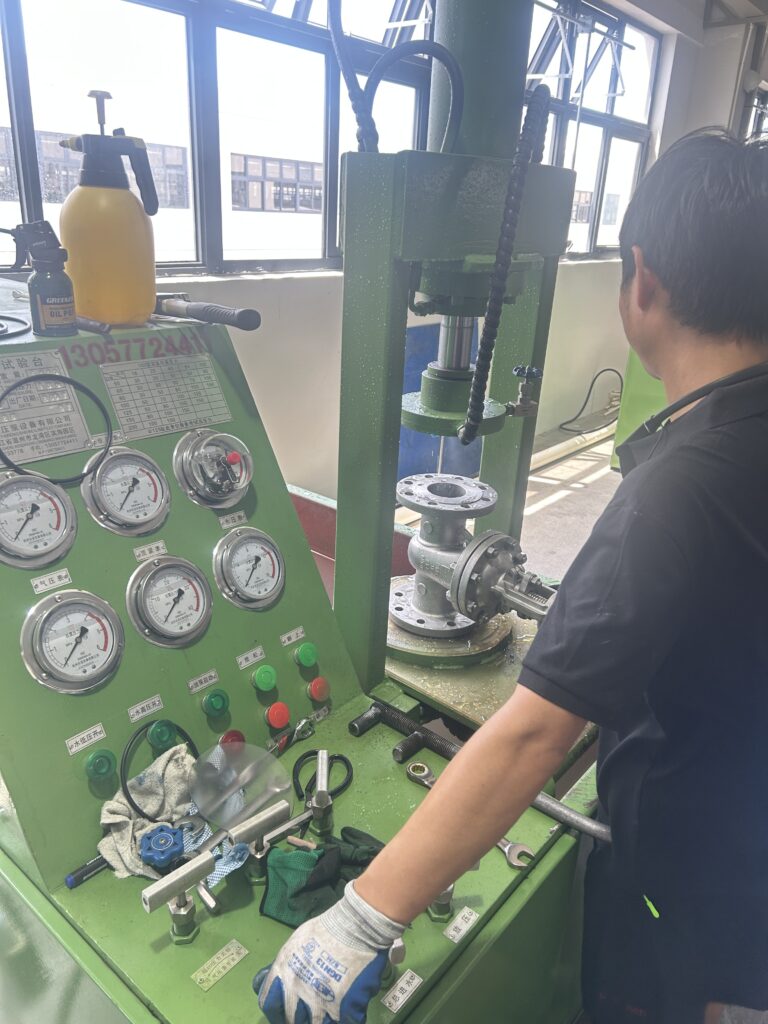

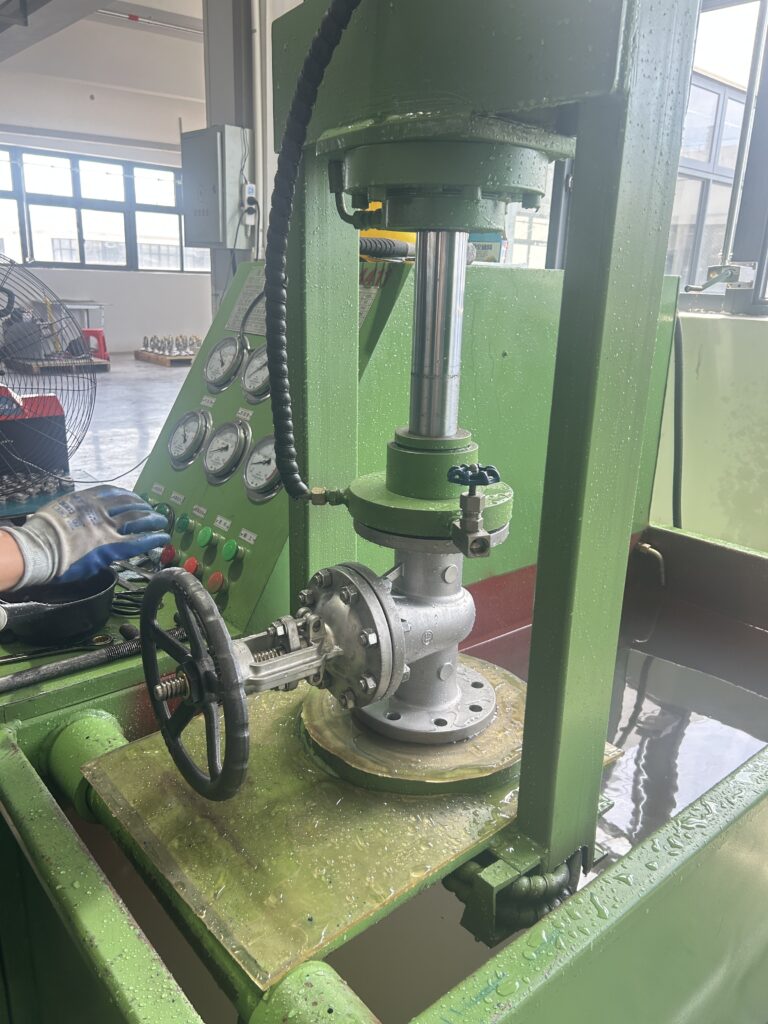

HYDRAULIC TEST BENCHQuality records
A Product Test Report in Every Shipment
- Heat number of the body casting
- Chemical composition against ASTM limits
- Mechanical properties: tensile, yield, elongation
- Shell and seat test pressure and hold time per API 598
- Signed and stamped by our QC department
We welcome third-party inspection (e.g. SGS or BV), arranged and paid for by the buyer; inspectors get full access to our plant and test bench.
Download Sample EN 10204 3.1 Report (PDF)How to order
Model Code Z41W-150LB
Order code by size, e.g. Z41W-150LB-2″. We confirm the full code and body material on the order confirmation.
Send us these 7 details for a fast quote
- Size (NPS 2″ or 2½″)
- Pressure class (150 / 300 / 600)
- Body material (WCB / CF8 / CF3M)
- Media and temperature
- Quantity
- Marking or nameplate needs
- Destination port
Made by BAUTU
From Casting to Crate

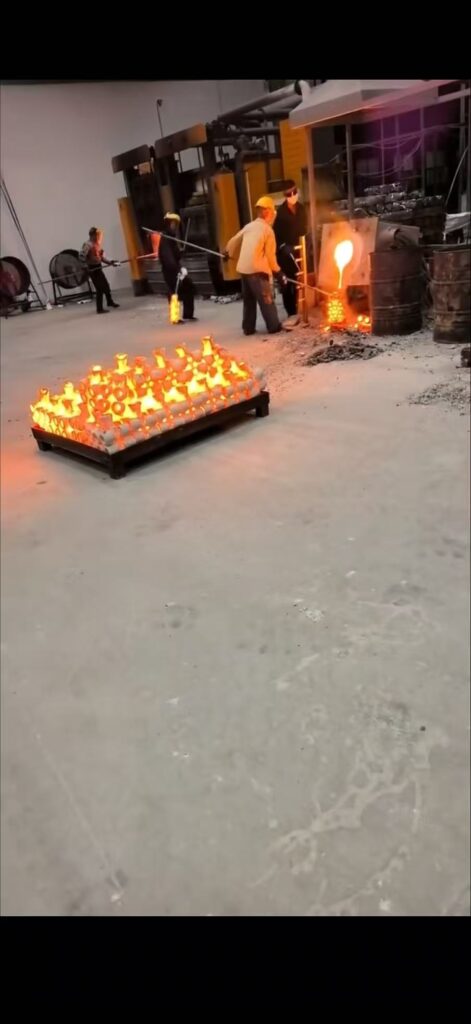

01 CASTING
02 MACHINING
03 ASSEMBLY
04 PRESSURE TESTSee the valve before you order
Real footage from our gate valve line. Want to see your own order? Book a live video call and we show your valves on the test bench.
Book a Video Tour

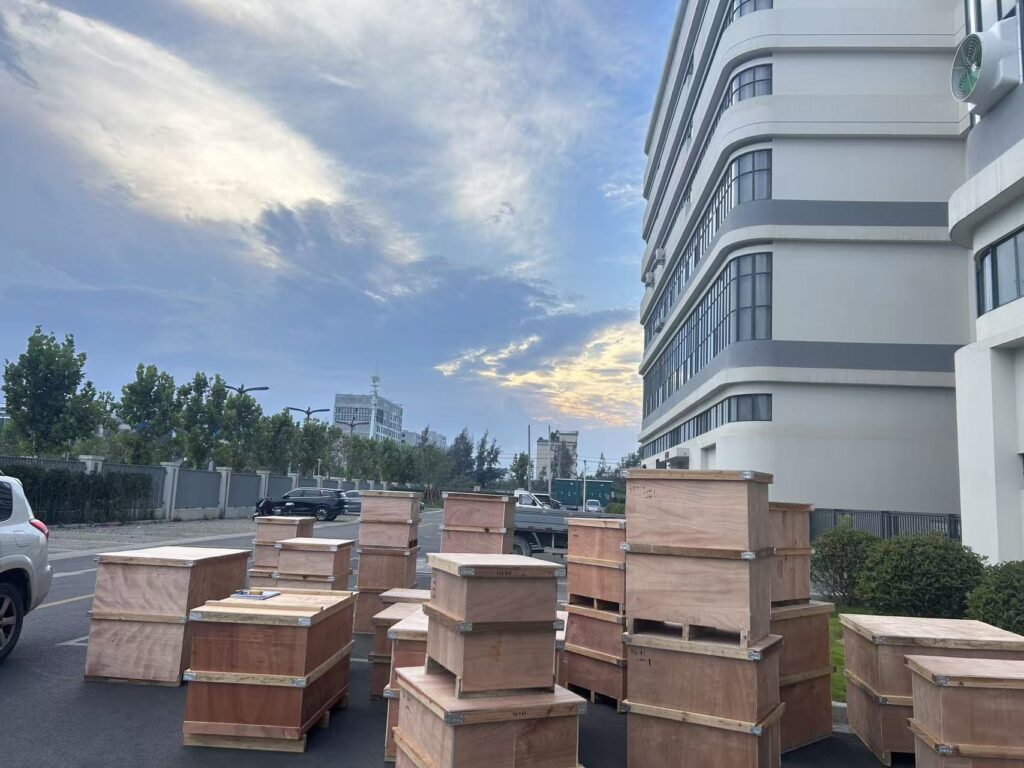

CRATED AT OUR PLANTPacking & delivery
