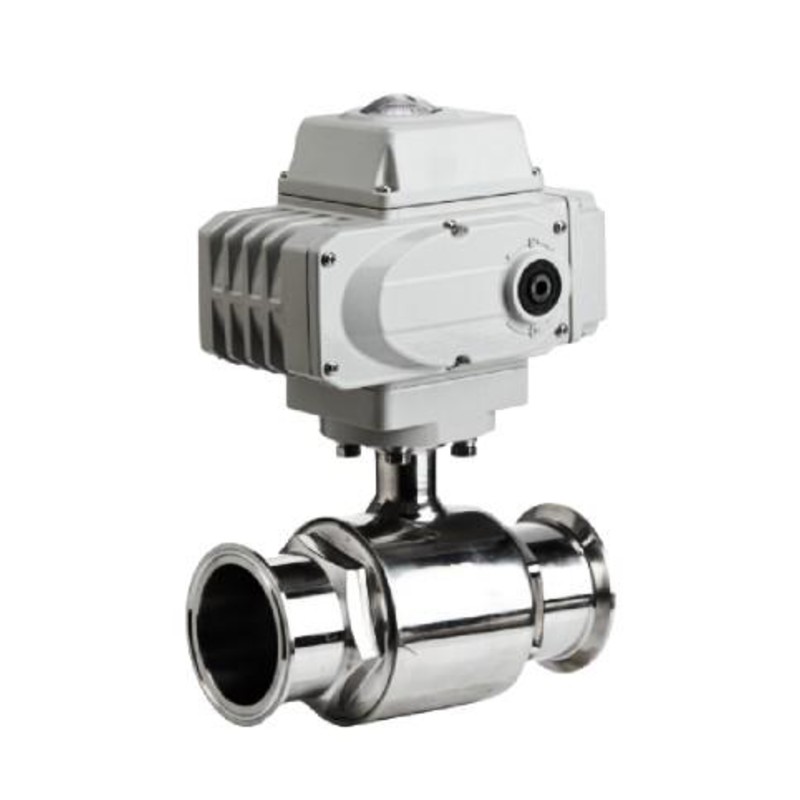

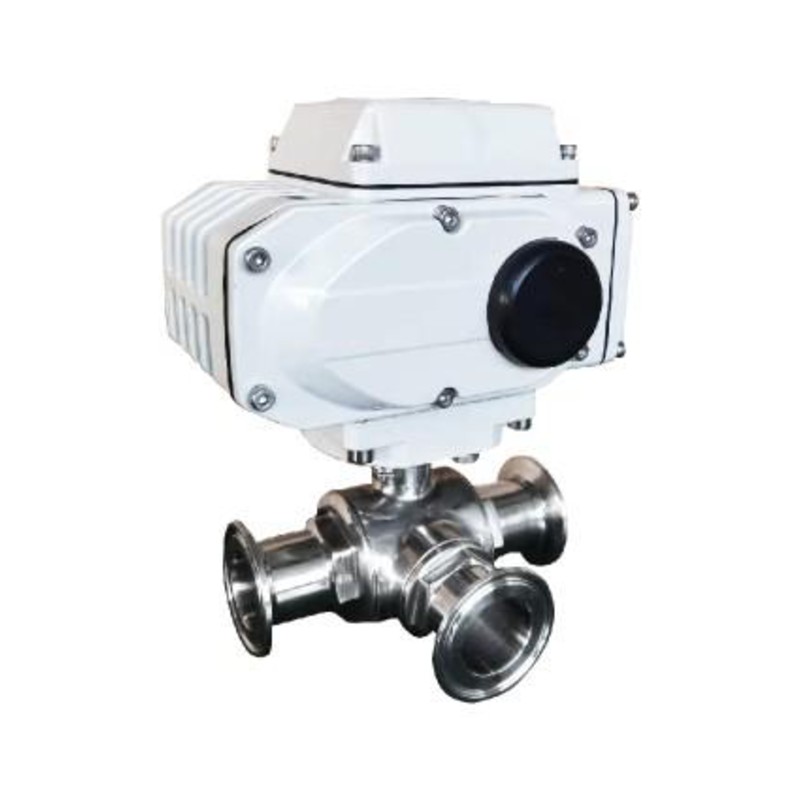

Electric Sanitary Tri-Clamp Ball Valve — 2-Way and 3-Way
Stainless steel ball valve with tri-clamp ends for sanitary tube and an electric actuator. Two-way from Ø19 to Ø159; three-way from Ø19 to Ø102. AC 110V, 220V, 380V or DC 24V.
- Two-way and three-way versions
- On-off or modulating
- Standard sizes ship in 15–20 days
An engineer replies within 24 hours. Send size, pressure, body material, actuator type and quantity.
Specifications
Technical Data
| Electric Q981F (2-way) | Electric 3-way | |
|---|---|---|
| Tube O.D. | Ø19–Ø159 | Ø19–Ø102 |
| Nominal pressure | 0–1.0 MPa | 0–1.0 MPa |
| Body | CF8 · CF8M | CF8 · CF8M |
| Body material options | Body material can be changed to suit your media (e.g. 316L, or WCB carbon steel); tell us what you need | |
| Seat | PTFE | PTFE |
| Stem | 304 | 304 |
| Medium temperature | −20 °C to +180 °C | −20 °C to +180 °C |
| Ambient temperature | −20 °C to +60 °C | −20 °C to +60 °C |
| Power supply | AC 110V · AC 220V · AC 380V · DC 24V | AC 110V · AC 220V · AC 380V · DC 24V |
| Control | On-off, or modulating (4–20 mA control signal) | On-off, or modulating (4–20 mA control signal) |
| Power failure | Valve stays in its last position | Valve stays in its last position |
| Hazardous areas | Standard, or explosion-proof (Ex-marked electric actuator) | Standard, or explosion-proof (Ex-marked electric actuator) |
Application
Where It Is Used
Sanitary lines controlled from a PLC, and diverting between two outlets (3-way).
- Food and beverage
- Dairy and brewing
- Pharmaceutical and cosmetics
- Water and CIP lines
ASSEMBLY HALL · WENZHOUDimensions

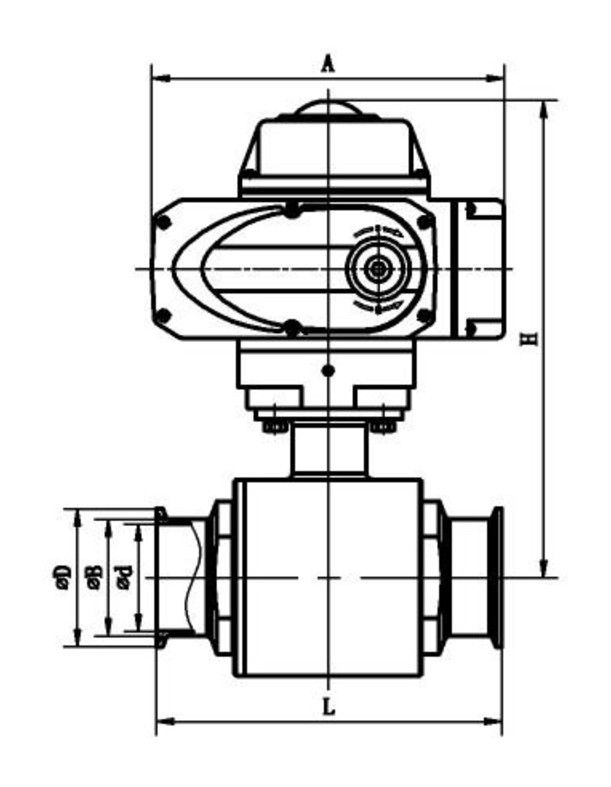

Dimensions (mm)
Size = tube O.D. · L = length · d = bore · D = clamp ferrule O.D. · A = actuator width · H = height.
Electric Q981F-10P/R (2-way)
| Size | L | d | D | A | H | Electric actuator size |
|---|---|---|---|---|---|---|
| Ø19 | 108 | 16 | 50.5 | 160 | 173 | 05 |
| Ø25 | 112 | 22 | 50.5 | 160 | 178 | 05 |
| Ø32 | 125 | 29 | 50.5 | 160 | 185 | 05 |
| Ø38 | 135 | 35 | 50.5 | 160 | 194 | 05 |
| Ø45 | 150 | 42 | 64 | 160 | 216 | 05 |
| Ø51 | 160 | 48 | 64 | 196 | 240 | 10 |
| Ø57 | 170 | 53 | 77.5 | 196 | 245 | 10 |
| Ø63 | 178 | 59 | 77.5 | 196 | 258 | 10 |
| Ø76 | 220 | 72 | 91 | 196 | 265 | 10 |
| Ø89 | 240 | 85 | 106 | 256 | 285 | 20 |
| Ø102 | 270 | 97 | 119 | 256 | 294 | 20 |
| Ø114 | 320 | 108 | 130 | 256 | 305 | 20 |
| Ø133 | 400 | 125 | 145 | 256 | 322 | 40 |
| Ø159 | 480 | 150 | 172 | 256 | 350 | 40 |

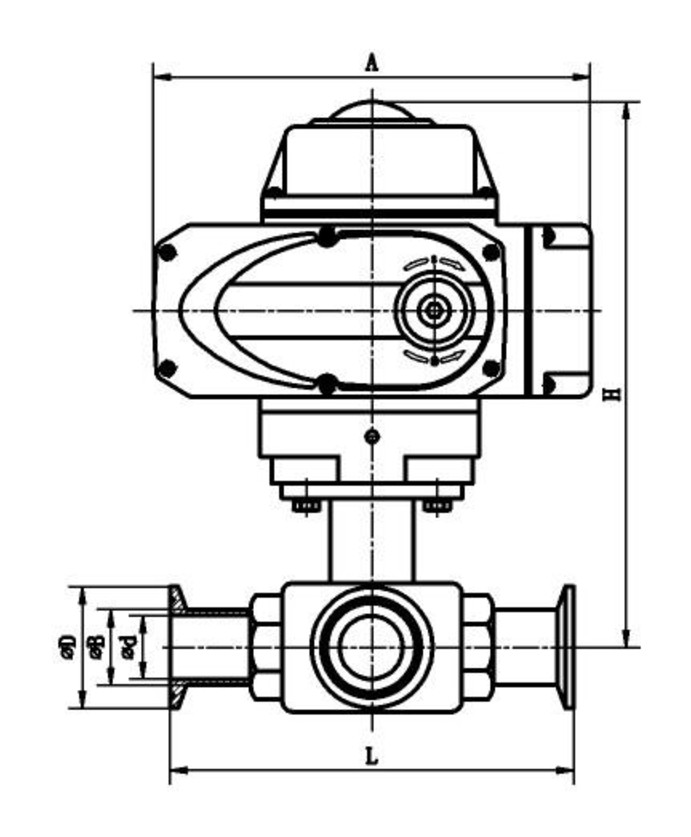

Electric 3-way
| Size | L | d | D | A | H | Electric actuator size |
|---|---|---|---|---|---|---|
| Ø19 | 107 | 16 | 50.5 | 160 | 173 | 05 |
| Ø25 | 127 | 22 | 50.5 | 160 | 178 | 05 |
| Ø32 | 138 | 29 | 50.5 | 160 | 185 | 05 |
| Ø38 | 157 | 35 | 50.5 | 160 | 194 | 05 |
| Ø51 | 188 | 48 | 64 | 196 | 226 | 10 |
| Ø63 | 200 | 59 | 77.5 | 196 | 240 | 10 |
| Ø76 | 220 | 72 | 91 | 256 | 282 | 20 |
| Ø89 | 240 | 85 | 106 | 256 | 298 | 20 |
| Ø102 | 260 | 97 | 119 | 256 | 304 | 40 |
Real photos
Sanitary Ball Valve Video
Testing
Pressure Test on Every Valve
| Test | Pressure |
|---|---|
| Shell test (water) | Per rating |
| Seat test | Per rating |
Actual test pressures for each valve are on the test report.
SHELL & SEAT TEST
ACTUATED VALVESQuality records
A Test Report in Every Shipment
- Heat number of the body casting
- Materials of body, ball and stem
- Shell and seat test pressures
- Open/close check of the assembly
- Signed and stamped by our QC department
We welcome third-party inspection (e.g. SGS or BV), arranged and paid for by the buyer; inspectors get full access to our plant and test bench.
Download Sample Test Report (PDF)Options
Actuators & Accessories
- On-off or modulating electric actuator
- Power supply AC 110V, 220V, 380V or DC 24V
- Explosion-proof electric actuator for hazardous areas
- Actuator size matched to valve torque
- Body material to suit your media
Tell us the voltage and control signal and we confirm the actuator with your quote.
Send us these 6 details for a fast quote
- Tube size; two-way or three-way
- Body material
- Voltage (AC 110/220/380V or DC 24V)
- On-off or modulating; control signal; explosion-proof
- Media and temperature
- Quantity and destination port
Made by BAUTU
From Casting to Actuated Assembly
01 CASTING
02 MACHINING
03 ACTUATOR FITTING
04 PRESSURE TEST
ACTUATED VALVES · WENZHOUSee your valves before they ship
Book a live video call and we show your assemblies opening and closing on our bench before packing.
Book a Video TourFAQ
Frequently Asked Questions
Which voltages are available?
AC 110V, AC 220V, AC 380V and DC 24V. Tell us your supply and we fit the matching actuator.
On-off or modulating electric actuator?
An on-off actuator only opens and closes the valve. A modulating actuator positions the valve anywhere between open and closed according to a control signal, so it can regulate flow.
What sizes do the tri-clamp ends fit?
Sizes are given as tube outside diameter. The clamp ferrule diameter for each size is in the dimension table.
What happens if the power fails?
A standard electric actuator stays in its last position. If the valve must close on power failure, choose a pneumatic single-acting (spring-return) ball valve.
Do you supply explosion-proof versions?
Yes. Tell us the hazardous-area classification of your site and we fit an explosion-proof actuator and accessories.
What documents ship with the valve?
A product test report with the heat number of the body casting, materials and the pressure test results. We welcome third-party inspection (e.g. SGS or BV), arranged and paid for by the buyer.
What is the lead time?
Standard sizes ship in 15–20 days. Special actuators, voltages or accessories may take longer; we confirm the date with your quote.
Can I get a different body material?
Yes. CF8 and CF8M are our standard; the body material can be changed to suit your media. Tell us the media and temperature and we confirm the material with your quote.
Need a Quote for This Valve?
Send size, pressure, body material, actuator type and quantity. An engineer replies within 24 hours.
