Globe valve · Chinese standard · Made in Wenzhou
GB/T 12235 Flanged Globe Valve — PN16 to PN40, DN10 to DN600
Flanged globe valve with bolted bonnet, rising stem and handwheel, for throttling and tight shut-off in lines built to Chinese standards. PN16 to PN40, DN10 to DN600, −50 °C to +425 °C, in WCB, CF8 or CF3M.
- Bodies cast in our own foundry, traceable to the heat number
- Every valve shell and seat tested, test report in every shipment
- Standard sizes ship in 15–20 days
An engineer replies within 24 hours. Send size, PN, material and quantity.
Specifications
Technical Data
| Design standard | GB/T 12235 |
| Face-to-face | GB/T 12221 |
| Flanges | HG/T 20592, raised face |
| Size range | DN10–DN600 (PN40 up to DN500) |
| Pressure rating | PN16 / PN25 / PN40 |
| Operating temperature | −50 °C to +425 °C (depends on body material) |
| Body material | WCB (A216) · CF8 (A351) · CF3M (A351) |
| Seating | Metal-to-metal, hard seal (W) |
| Operation | Handwheel |
| Testing | Shell and seat test on every valve |
Application
Where It Is Used
For lines built to Chinese standards where the flow has to be regulated or the valve is operated often.
- Flow control in chemical and process plants (HG series)
- Corrosive media lines (CF3M body)
- Water, oil and gas lines
- Projects and plants designed to GB standards
ASSEMBLY HALL · WENZHOUConstruction
Parts & Materials
Body, bonnet and disc in WCB, CF8 or CF3M with matching stainless trim. The bill of materials for your size and material is sent with the quotation.
Design notes
- Simple construction, easy to make and maintain
- The disc lifts straight off the seat with no sliding between the sealing faces: little wear, tight sealing, long service life
- Short disc travel, so the valve is lower than a gate valve, with a longer face-to-face length
- Media flows one way only, in the direction of the arrow on the body; in this pressure range it enters under the disc
- Higher flow resistance and operating torque than a gate valve; for full-bore on/off service choose a gate valve
Dimensions
Dimensions (mm)
Face-to-face lengths to GB/T 12221 and flanges to HG/T 20592. Unit: mm.
PN16, DN10–DN600
| DN | L | D | D1 | D2 | b-f | Z-Ød | H | D0 |
|---|---|---|---|---|---|---|---|---|
| DN10 | 130 | 90 | 60 | 40 | 14-2 | 4-Ø14 | 198 | 120 |
| DN15 | 130 | 95 | 65 | 45 | 14-2 | 4-Ø14 | 218 | 120 |
| DN20 | 150 | 105 | 75 | 55 | 14-2 | 4-Ø14 | 230 | 140 |
| DN25 | 160 | 115 | 85 | 65 | 14-2 | 4-Ø14 | 240 | 160 |
| DN32 | 180 | 135 | 100 | 78 | 16-2 | 4-Ø18 | 250 | 180 |
| DN40 | 200 | 145 | 110 | 85 | 16-3 | 4-Ø18 | 262 | 200 |
| DN50 | 230 | 160 | 125 | 100 | 16-3 | 4-Ø18 | 280 | 240 |
| DN65 | 290 | 180 | 145 | 120 | 18-3 | 4-Ø18 | 327 | 280 |
| DN80 | 310 | 195 | 160 | 135 | 20-3 | 8-Ø18 | 355 | 280 |
| DN100 | 350 | 215 | 180 | 155 | 20-3 | 8-Ø18 | 415 | 320 |
| DN125 | 400 | 245 | 210 | 185 | 22-3 | 8-Ø18 | 460 | 360 |
| DN150 | 480 | 280 | 240 | 210 | 24-3 | 8-Ø23 | 510 | 400 |
| DN200 | 600 | 335 | 295 | 265 | 26-3 | 12-Ø23 | 588 | 400 |
| DN250 | 650 | 405 | 355 | 320 | 30-3 | 12-Ø25 | 725 | 450 |
| DN300 | 750 | 460 | 410 | 375 | 30-4 | 12-Ø25 | 925 | 500 |
| DN350 | 850 | 520 | 470 | 435 | 34-4 | 16-Ø25 | 1030 | 600 |
| DN400 | 950 | 580 | 525 | 485 | 36-4 | 16-Ø30 | 1170 | 700 |
| DN450 | 1050 | 640 | 585 | 545 | 40-4 | 20-Ø30 | 1220 | 800 |
| DN500 | 1150 | 705 | 650 | 608 | 44-4 | 20-Ø34 | 1410 | 900 |
| DN600 | 1350 | 840 | 770 | 718 | 48-5 | 20-Ø41 | 1610 | 1000 |
PN25, DN10–DN600
| DN | L | D | D1 | D2 | b-f | Z-Ød | H | D0 |
|---|---|---|---|---|---|---|---|---|
| DN10 | 130 | 90 | 60 | 40 | 16-2 | 4-Ø14 | 198 | 120 |
| DN15 | 130 | 95 | 65 | 45 | 16-2 | 4-Ø14 | 218 | 120 |
| DN20 | 150 | 105 | 75 | 55 | 16-2 | 4-Ø14 | 258 | 140 |
| DN25 | 160 | 115 | 85 | 65 | 16-2 | 4-Ø14 | 275 | 160 |
| DN32 | 180 | 135 | 100 | 78 | 18-2 | 4-Ø18 | 280 | 180 |
| DN40 | 200 | 145 | 110 | 85 | 18-3 | 4-Ø18 | 330 | 200 |
| DN50 | 230 | 160 | 120 | 100 | 20-3 | 4-Ø18 | 350 | 240 |
| DN65 | 290 | 180 | 145 | 120 | 22-3 | 8-Ø18 | 400 | 280 |
| DN80 | 310 | 195 | 160 | 135 | 22-3 | 8-Ø18 | — | 280 |
| DN100 | 350 | 230 | 190 | 160 | 24-3 | 8-Ø23 | 415 | 320 |
| DN125 | 400 | 270 | 220 | 188 | 28-3 | 8-Ø25 | 460 | 360 |
| DN150 | 480 | 300 | 250 | 218 | 30-3 | 8-Ø25 | 510 | 400 |
| DN200 | 600 | 360 | 310 | 278 | 34-3 | 12-Ø25 | 710 | 400 |
| DN250 | 650 | 425 | 370 | 332 | 36-3 | 12-Ø30 | 786 | 450 |
| DN300 | 750 | 485 | 430 | 390 | 40-4 | 16-Ø30 | 925 | 500 |
| DN350 | 850 | 550 | 490 | 448 | 44-4 | 16-Ø34 | 1030 | 600 |
| DN400 | 950 | 610 | 550 | 505 | 48-4 | 16-Ø41 | 1170 | 700 |
| DN450 | 1050 | 660 | 600 | 555 | 50-4 | 20-Ø34 | 1220 | 800 |
| DN500 | 1150 | 730 | 660 | 610 | 52-4 | 20-Ø41 | 1450 | 900 |
| DN600 | 1350 | 840 | 770 | 718 | 56-5 | 20-Ø41 | 1810 | 1000 |
PN40, DN10–DN500
| DN | L | D | D1 | D2 | D6 | b-f | f2 | Z-Ød | H | D0 |
|---|---|---|---|---|---|---|---|---|---|---|
| DN10 | 130 | 90 | 60 | 40 | 35 | 16-2 | 4 | 4-Ø14 | 198 | 120 |
| DN15 | 130 | 95 | 65 | 45 | 40 | 16-2 | 4 | 4-Ø14 | 233 | 120 |
| DN20 | 150 | 105 | 75 | 55 | 51 | 16-2 | 4 | 4-Ø14 | 275 | 140 |
| DN25 | 160 | 115 | 85 | 65 | 58 | 16-2 | 4 | 4-Ø14 | 285 | 160 |
| DN32 | 180 | 135 | 100 | 78 | 66 | 18-2 | 4 | 4-Ø18 | 302 | 180 |
| DN40 | 200 | 145 | 110 | 85 | 76 | 18-3 | 4 | 4-Ø18 | 355 | 200 |
| DN50 | 230 | 160 | 125 | 100 | 88 | 20-3 | 4 | 4-Ø18 | 373 | 240 |
| DN65 | 290 | 180 | 145 | 120 | 110 | 22-3 | 4 | 8-Ø18 | 408 | 280 |
| DN80 | 310 | 195 | 160 | 135 | 121 | 22-3 | 4 | 8-Ø18 | 436 | 320 |
| DN100 | 350 | 230 | 190 | 160 | 150 | 24-3 | 4.5 | 8-Ø23 | 480 | 360 |
| DN125 | 400 | 270 | 220 | 188 | 176 | 28-3 | 4.5 | 8-Ø25 | 558 | 400 |
| DN150 | 480 | 300 | 250 | 218 | 204 | 30-3 | 4.5 | 8-Ø25 | 611 | 400 |
| DN200 | 600 | 375 | 320 | 282 | 260 | 38-3 | 4.5 | 12-Ø30 | — | 400 |
| DN250 | 650 | 445 | 385 | 345 | 313 | 42-3 | 4.5 | 12-Ø34 | — | 500 |
| DN300 | 750 | 510 | 450 | 408 | 364 | 46-4 | 4.5 | 16-Ø34 | — | 550 |
| DN350 | 850 | 570 | 510 | 465 | 422 | 52-4 | 5 | 16-Ø34 | 860 | 600 |
| DN400 | 950 | 655 | 585 | 535 | 474 | 58-4 | 5 | 16-Ø41 | 1010 | 700 |
| DN450 | 1050 | 680 | 610 | 560 | 524 | 60-4 | 5 | 20-Ø41 | 1190 | 800 |
| DN500 | 1150 | 755 | 670 | 612 | 576 | 62-4 | 5 | 20-Ø48 | 1260 | 900 |
— = not yet confirmed; sent with your quotation. L face-to-face · D flange outside diameter · D1 bolt circle diameter · D2 raised face diameter · b-f flange thickness and raised face height · D6, f2 recessed-face diameter and depth · Z-Ød number and diameter of bolt holes · H height · D0 handwheel diameter.
CAPPED & BAGGEDChecked before packing
Face-to-face and flange dimensions are checked against the drawing before packing. Each valve gets a QC tag with model, size, rating and inspector.
Pressure rating
Pressure Rating
| Rating | Nominal pressure (MPa) |
|---|---|
| PN16 | 1.6 |
| PN25 | 2.5 |
| PN40 | 4.0 |
Nominal pressure at room temperature. The allowed pressure falls as the temperature rises.
Testing
Pressure Test on Every Valve
| Test | Pressure |
|---|---|
| Shell test (water) | 1.5 × PN |
| Seat test (water) | 1.1 × PN |
Actual test pressures for each valve are on the test report.
HYDRAULIC TEST BENCH
SHELL & SEAT TESTQuality records
A Product Test Report in Every Shipment
- Heat number of the body casting
- Chemical composition against ASTM limits
- Mechanical properties: tensile, yield, elongation
- Shell and seat test pressure and hold time
- Signed and stamped by our QC department
We welcome third-party inspection (e.g. SGS or BV), arranged and paid for by the buyer; inspectors get full access to our plant and test bench.
Download Sample EN 10204 3.1 Report (PDF)How to order
Model Code J41W-16P
The pressure figure and material letter change with your order, e.g. J41W-40P. We confirm the full code on the order confirmation.
Send us these 7 details for a fast quote
- Size (DN10–DN600)
- Pressure rating (PN16 / 25 / 40)
- Body material (WCB / CF8 / CF3M)
- Media and temperature
- Quantity
- Marking or nameplate needs
- Destination port
Made by BAUTU
From Casting to Crate
01 CASTING
02 MACHINING03 ASSEMBLY
04 PRESSURE TEST

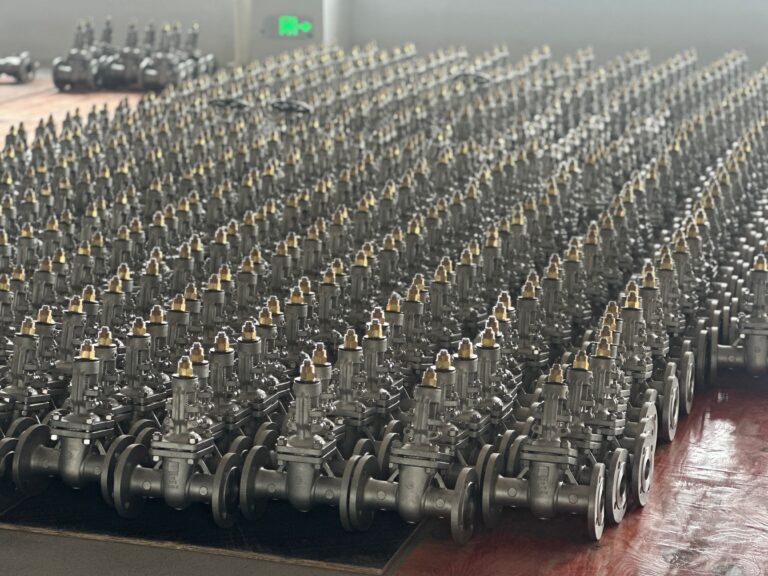

FINISHED VALVESSee the valve before you order
Want to see your own order before it ships? Book a live video call and we show your valves on the test bench.
Book a Video Tour
BAGGED & CAPPEDPacking & delivery
Packed for Sea Freight
- Flange faces capped to protect the sealing face
- Each valve bagged; the order packed in plywood cases
- Product test report inside every case
- Standard sizes ship in 15–20 days
FAQ
Frequently Asked Questions
Globe valve or gate valve: which do I need?
Choose a globe valve when you need to throttle the flow or operate the valve often, and when tight shut-off matters. Choose a gate valve for lines that run fully open or fully closed with a low pressure drop, such as our GB/T 12234 gate valve.
Which way round is a globe valve installed?
Follow the arrow on the body: the media flows one way only and must not be reversed. In the PN16 to PN40 range the flow enters under the disc. Leave room above the handwheel to lift the stem.
What does HG series mean?
HG/T standards are the Chinese chemical-industry standards. Our GB globe valves use HG/T 20592 flanges, the flange standard used in Chinese chemical plants.
Which body material should I choose: WCB, CF8 or CF3M?
WCB carbon steel for non-corrosive water, oil, gas and steam. CF8 (cast 304) for general corrosion resistance. CF3M (cast 316L) for chlorides, seawater and chemical media.
What documents ship with the valve?
A product test report with the heat number of the body casting, chemical composition, mechanical properties and the pressure test results. We welcome third-party inspection (e.g. SGS or BV), arranged and paid for by the buyer.
What is the lead time?
Standard sizes ship in 15–20 days. Large sizes and special options may take longer; we confirm the delivery date with your quote.
