Globe valve · American standard · Made in Wenzhou

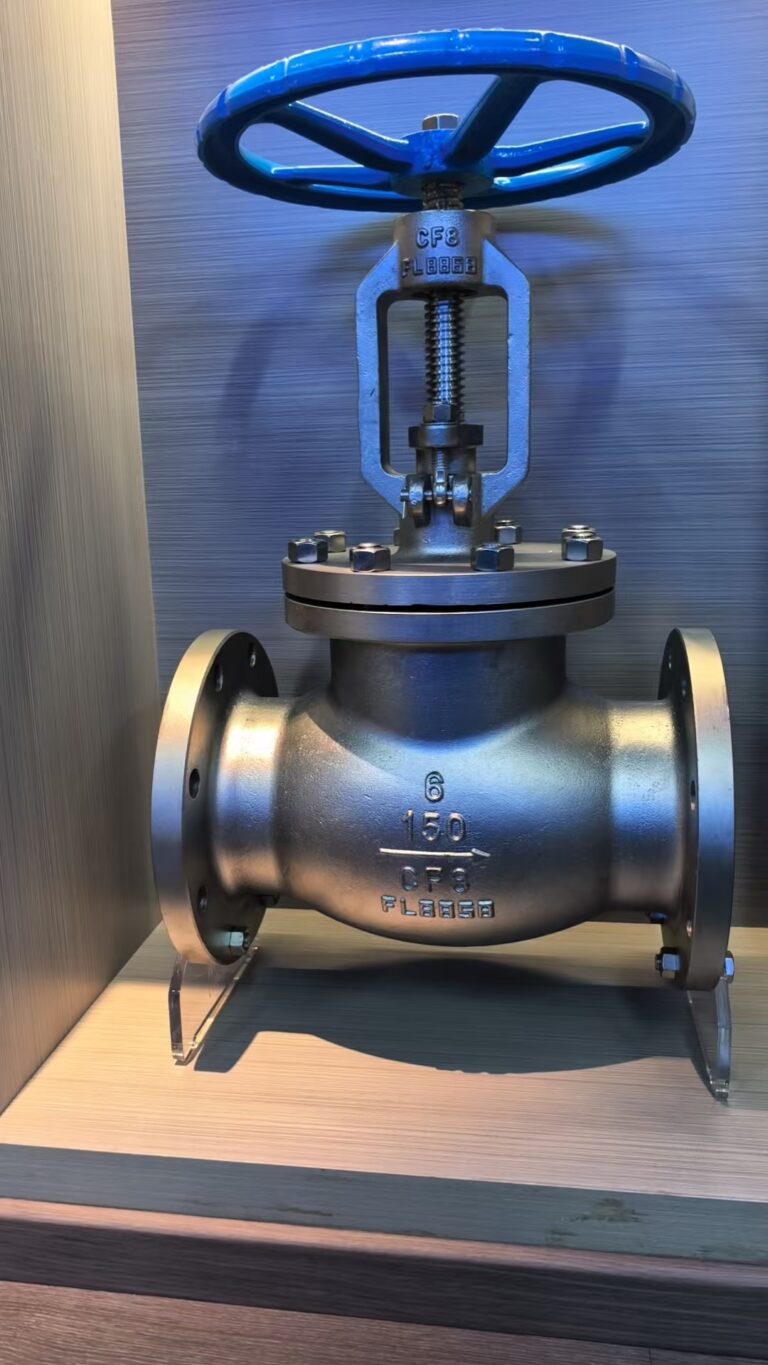

API 623 Flanged Globe Valve — Class 150 / 300 / 600
Flanged globe valve with bolted bonnet, rising stem and handwheel, for throttling and tight shut-off. Class 150, 300 and 600, NPS ½″ to 16″, −50 °C to +425 °C, in WCB, CF8 or CF3M.
- Bodies cast in our own foundry, traceable to the heat number
- Every valve shell and seat tested per API 598, test report in every shipment
- Standard sizes ship in 15–20 days
An engineer replies within 24 hours. Send size, class, material and quantity. Download GA drawing (PDF) →
Specifications
Technical Data
| Design standard | API 623 |
| Face-to-face | ASME B16.10 |
| Flanges | HG/T 20615 (Class series), raised face |
| Size range | NPS ½″–16″ (DN15–DN400); Class 600 up to 12″ |
| Pressure class | Class 150 / 300 / 600 |
| Body material | WCB (A216) · CF8 (A351) · CF3M (A351) |
| Disc and stem | A182 F316L (CF3M valve) |
| Seating | Metal-to-metal, hard seal (W) |
| Packing | Flexible graphite |
| Stem nut | Aluminium bronze ZCuAl10Fe3 |
| Temperature | −50 °C to +425 °C, depending on body material and trim |
| Operation | Handwheel |
| Testing | API 598 — every valve |
Application
Where It Is Used
For lines where the flow has to be regulated or the valve is opened and closed often, and where tight shut-off matters.
- Flow control in chemical and process plants
- Corrosive media lines (CF3M body)
- Steam, water and oil lines (WCB body)
- Projects specified to API / ASME

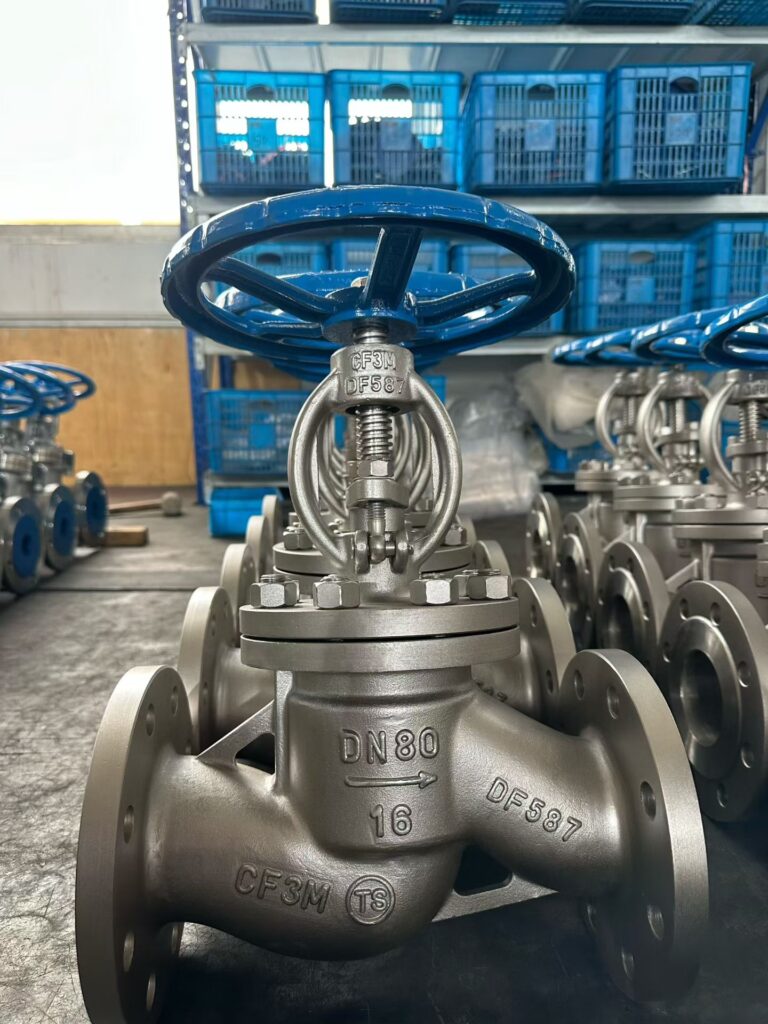

ASSEMBLY HALL · WENZHOUConstruction
Parts & Materials
From our J41W-300LB general assembly drawing (CF3M). WCB and CF8 versions are built the same way with matching trim; we confirm the bill of materials with your quotation.
| Part | Material (CF3M valve) |
|---|---|
| Body | A351 CF3M |
| Bonnet | A351 CF3M |
| Disc | A182 F316L |
| Stem | A182 F316L |
| Bonnet gasket | 316 + flexible graphite |
| Bonnet studs / nuts | A193 B8 / A194 8 |
| Packing | Flexible graphite |
| Packing gland | A276 316L |
| Gland flange | A351 CF3M |
| Eye bolts / nuts | A193 B8 / A194 8 |
| Stem nut | ZCuAl10Fe3 aluminium bronze |
| Handwheel | A197 malleable iron |
Design notes
- Simple construction, easy to make and maintain
- The disc lifts straight off the seat with no sliding between the sealing faces: little wear, tight sealing, long service life
- Short disc travel, so the valve is lower than a gate valve, with a longer face-to-face length
- Media flows one way only, in the direction of the arrow on the body
- Higher flow resistance and operating torque than a gate valve; for full-bore on/off service choose a gate valve
Dimensions
Dimensions (mm)
Face-to-face to ASME B16.10. Unit: mm.
Class 150, NPS ½″–16″
| NPS | L | D | D1 | D2 | b | Z-Ød | H | D0 |
|---|---|---|---|---|---|---|---|---|
| ½″ | 108 | 89 | 60.5 | 35 | 11.2 | 4-Ø16 | 241 | 100 |
| ¾″ | 117 | 98 | 69.9 | 43 | 12.7 | 4-Ø16 | 241 | 100 |
| 1″ | 127 | 108 | 79.2 | 51 | 14.2 | 4-Ø16 | 242 | 125 |
| 1¼″ | 140 | 117 | 89 | 63 | 16 | 4-Ø16 | 280 | 160 |
| 1½″ | 165 | 127 | 98.6 | 73 | 17.5 | 4-Ø16 | 286 | 160 |
| 2″ | 203 | 152 | 120.7 | 92 | 19 | 4-Ø19 | 368 | 200 |
| 2½″ | 216 | 178 | 139.7 | 105 | 22.4 | 4-Ø19 | 387 | 200 |
| 3″ | 241 | 190 | 152.4 | 127 | 24 | 4-Ø19 | 411 | 250 |
| 4″ | 292 | 229 | 190.5 | 157 | 24 | — | 454 | 250 |
| 5″ | 356 | 254 | 216.0 | 186 | 24 | 8-Ø22.5 | 455 | 350 |
| 6″ | 406 | 279 | 241.3 | 216 | 25.4 | 8-Ø22.5 | 541 | 350 |
| 8″ | 495 | 343 | 298.5 | 270 | 28.4 | 8-Ø22.5 | 651 | 450 |
| 10″ | 622 | 406 | 362.0 | 324 | 30.2 | 12-Ø25.4 | 800 | 450 |
| 12″ | 698 | 483 | 431.8 | 381 | 32 | 12-Ø25.4 | 1231 | 600 |
| 14″ | 787 | 533 | 476.3 | 413 | 35 | 12-Ø29 | 1450 | 600 |
| 16″ | 914 | 597 | 539.8 | 470 | 36.6 | 16-Ø29 | 1645 | 600 |
Class 300, NPS ½″–16″
| NPS | L | D | D1 | D2 | b | Z-Ød | H | D0 |
|---|---|---|---|---|---|---|---|---|
| ½″ | 152 | 95 | 66.5 | 35 | 14.2 | 4-Ø16 | 241 | 140 |
| ¾″ | 178 | 117 | 82.5 | 43 | 16 | 4-Ø19 | 241 | 140 |
| 1″ | 203 | 123 | 89 | 51 | 17.5 | 4-Ø19 | 283 | 160 |
| 1¼″ | 216 | 133 | 98.5 | 63 | 19 | 4-Ø19 | 320 | 200 |
| 1½″ | 229 | 155 | 114.3 | 73 | 20.6 | 4-Ø22.5 | 322 | 200 |
| 2″ | 267 | 165 | 127 | 92 | 22.4 | 8-Ø19 | 399 | 200 |
| 2½″ | 292 | 190 | 149.4 | 105 | 25.4 | 8-Ø22.5 | 438 | 250 |
| 3″ | 318 | 210 | 168.1 | 127 | 28.4 | 8-Ø22.5 | 464 | 280 |
| 4″ | 356 | 254 | 200.2 | 157 | 31.8 | 8-Ø22.5 | 565 | 350 |
| 5″ | 400 | 279 | 235 | 186 | 35 | 8-Ø22.5 | 614 | 350 |
| 6″ | 444 | 318 | 269.7 | 216 | 36.6 | 12-Ø25.4 | 717 | 400 |
| 8″ | 559 | 381 | 330.2 | 270 | 41.2 | 12-Ø25.4 | 930 | 500 |
| 10″ | 622 | 444 | 387.4 | 324 | 47.8 | 16-Ø28.5 | 1012 | 550 |
| 12″ | 711 | 521 | 450.8 | 381 | 50.8 | 16-Ø32 | 1231 | 600 |
| 14″ | 838 | 584 | 514.4 | 413 | 54 | 20-Ø32 | 1450 | 600 |
| 16″ | 864 | 648 | 571.5 | 470 | 57.2 | 20-Ø35 | 1645 | 600 |
Class 600, NPS ½″–12″
| NPS | L | D | D1 | D2 | b | Z-Ød | H | D0 |
|---|---|---|---|---|---|---|---|---|
| ½″ | 165 | 95 | 66.5 | 35 | 14.5 | 4-Ø16 | 285 | 100 |
| ¾″ | 190 | 117 | 82.5 | 43 | 16 | 4-Ø19 | 285 | 125 |
| 1″ | 216 | 124 | 89 | 51 | 17.5 | 4-Ø19 | 313 | 160 |
| 1¼″ | 229 | 133 | 98.5 | 63 | 21 | 4-Ø19 | 328 | 160 |
| 1½″ | 241 | 156 | 114.3 | 73 | 22.5 | 4-Ø22.5 | 365 | 180 |
| 2″ | 292 | 165 | 127 | 92 | 33 | 8-Ø19 | 444 | 200 |
| 2½″ | 330 | 190 | 149.4 | 105 | 36 | 8-Ø22.5 | 483 | 250 |
| 3″ | 356 | 210 | 168.1 | 127 | 39 | 8-Ø22.5 | 533 | 250 |
| 4″ | 432 | 273 | 216 | 157 | 45 | 8-Ø25.4 | 622 | 350 |
| 5″ | 508 | 330 | 266.7 | 186 | 52 | 8-Ø28.5 | 750 | 350 |
| 6″ | 559 | 356 | 292.1 | 216 | 55 | 12-Ø28.5 | 800 | 450 |
| 8″ | 660 | 419 | 349.3 | 270 | 63 | 12-Ø32 | 927 | 500 |
| 10″ | 787 | 508 | 431.8 | 324 | 71 | 16-Ø35 | 1257 | 600 |
| 12″ | 838 | 559 | 489 | 381 | 74 | 20-Ø35 | 1468 | 680 |
— = not yet confirmed; sent with your quotation. L face-to-face · D flange outside diameter · D1 bolt circle diameter · D2 raised face diameter · b flange thickness · Z-Ød number and diameter of bolt holes · H height · D0 handwheel diameter.
CAPPED & BAGGEDChecked before packing
Face-to-face and flange dimensions are checked against the drawing before packing. Each valve gets a QC tag with model, size, class and inspector.
Pressure rating
Max. Working Pressure at 38 °C
| Body material | Class 150 (bar) | Class 300 (bar) | Class 600 (bar) |
|---|---|---|---|
| WCB | 19.6 | 51.1 | 102.1 |
| CF8 | 19.0 | 49.6 | 99.3 |
| CF3M | 15.9 | 41.4 | 82.7 |
Body ratings per ASME B16.34. The allowed pressure falls as the temperature rises.
Testing
API 598 Test on Every Valve
| Test | Pressure |
|---|---|
| Shell test (water), Class 300 | 7.5 MPa |
| Seat test (water), Class 300 | 5.5 MPa |
| Seat test (air) | 0.6 MPa |
Test pressures from our J41W-300LB drawing. Class 150 and 600 test pressures are on the test report.
HYDRAULIC TEST BENCH
SHELL & SEAT TESTQuality records
A Product Test Report in Every Shipment
- Heat number of the body casting
- Chemical composition against ASTM limits
- Mechanical properties: tensile, yield, elongation
- Shell and seat test pressure and hold time per API 598
- Signed and stamped by our QC department
We welcome third-party inspection (e.g. SGS or BV), arranged and paid for by the buyer; inspectors get full access to our plant and test bench.
Download Sample EN 10204 3.1 Report (PDF)How to order
Model Code J41W-300LB
Order code by class and size, e.g. J41W-300LB-2″. We confirm the full code and body material on the order confirmation.
Send us these 7 details for a fast quote
- Size (NPS ½″–16″)
- Pressure class (150 / 300 / 600)
- Body material (WCB / CF8 / CF3M)
- Media and temperature
- Quantity
- Marking or nameplate needs
- Destination port
Made by BAUTU
From Casting to Crate
01 CASTING
02 MACHINING03 ASSEMBLY
04 PRESSURE TEST

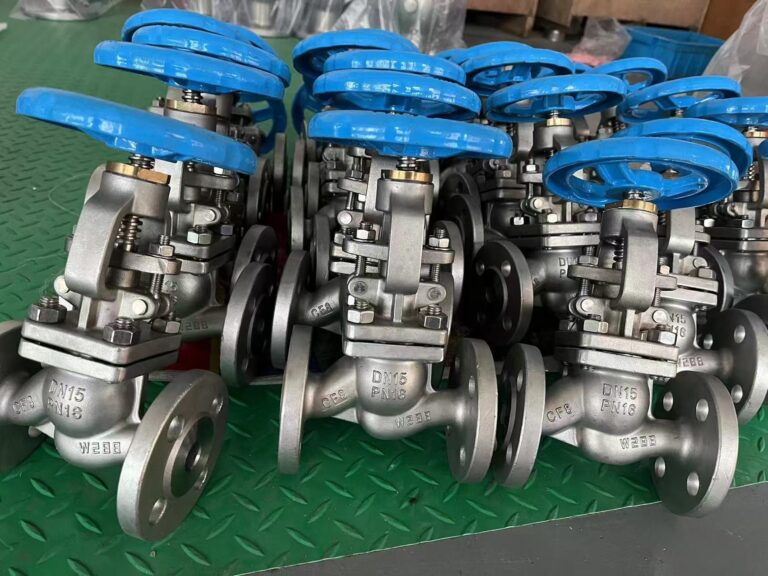

FINISHED VALVESSee the valve before you order
Want to see your own order before it ships? Book a live video call and we show your valves on the test bench.
Book a Video Tour

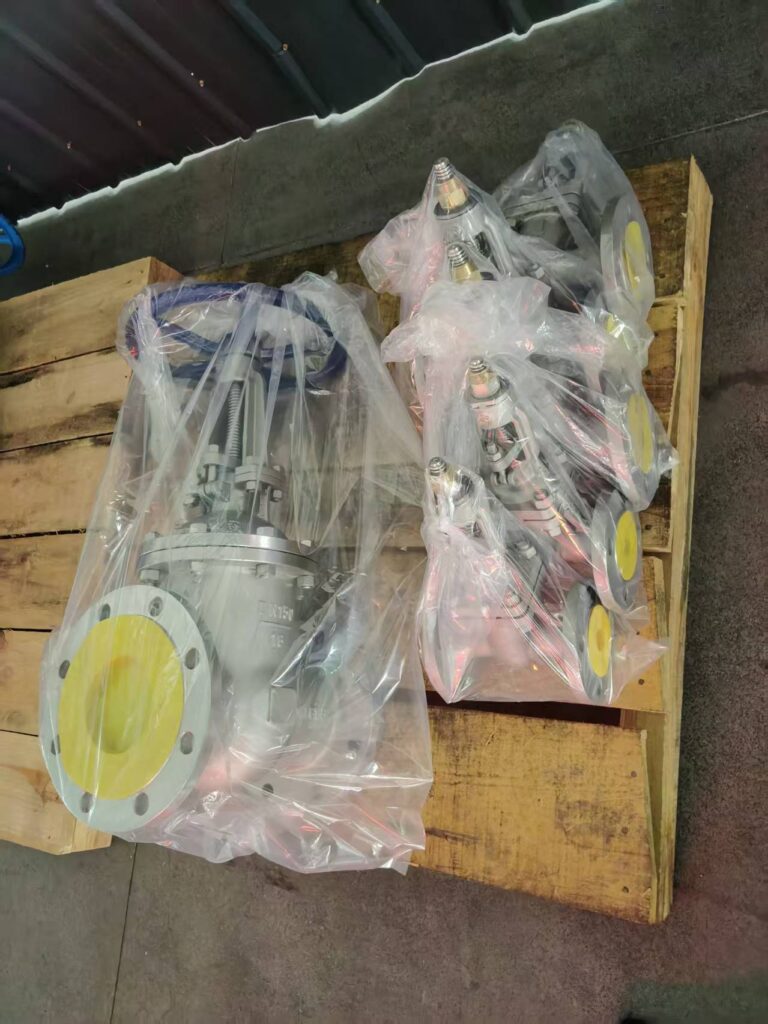

BAGGED & CAPPEDPacking & delivery
Packed for Sea Freight
- Flange faces capped to protect the sealing face
- Each valve bagged; the order packed in plywood cases
- Product test report inside every case
- Standard sizes ship in 15–20 days
FAQ
Frequently Asked Questions
Globe valve or gate valve: which do I need?

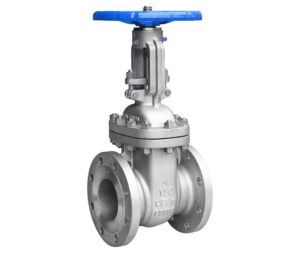

Choose a globe valve when you need to throttle the flow or operate the valve often, and when tight shut-off matters. Choose a gate valve for lines that run fully open or fully closed with a low pressure drop, such as our GB/T 12234 gate valve.
Which way round is a globe valve installed?
Follow the arrow on the body: the media flows one way only and must not be reversed. Leave room above the handwheel to lift the stem.
Can a globe valve be used to throttle flow?
Yes. The disc moves straight onto the seat, so the opening changes smoothly with the handwheel. That is why globe valves are used where the flow has to be regulated.
Which body material should I choose: WCB, CF8 or CF3M?
WCB carbon steel for non-corrosive water, oil, gas and steam. CF8 (cast 304) for general corrosion resistance. CF3M (cast 316L) for chlorides, seawater and chemical media.
Are your globe valves API certified?
They are designed and built to API 623 and pressure-tested per API 598. We do not hold an API Monogram licence.
What documents ship with the valve?
A product test report with the heat number of the body casting, chemical composition, mechanical properties and the pressure test results. We welcome third-party inspection (e.g. SGS or BV), arranged and paid for by the buyer.
What is the lead time?
Standard sizes ship in 15–20 days. Large sizes and special options may take longer; we confirm the delivery date with your quote.
Need a Quote for This Valve?
Send size, class, body material and quantity. An engineer replies within 24 hours.
