Pneumatic V-Port Ball Valve — Wafer Type, DN25 to DN250
Wafer-type ball valve with a V-shaped opening in the ball, driven by a pneumatic actuator. The V-port shears fibres and solids as it closes and gives a more even change of flow than a round port.
- Soft (PTFE) or hard-alloy seats
- Short wafer body between pipe flanges
- Standard sizes ship in 15–20 days
An engineer replies within 24 hours. Send size, pressure, body material, actuator type and quantity.
Specifications
Technical Data
| Pneumatic VQ641F | |
|---|---|
| Size | DN25–DN250 |
| Nominal pressure | 0–1.6 MPa |
| Body | CF8 · CF8M |
| Seat | PTFE · hard alloy |
| Stem | 304 |
| Sealing ring | NBR |
| Medium temperature | −20 °C to +180 °C |
| Ambient temperature | −20 °C to +60 °C |
| Air supply | 0.3–0.8 MPa, clean neutral gas or air |
| Control | On-off, or regulating with a positioner |
The −20 °C to +180 °C range applies to PTFE seats; ask us for the limits of hard-alloy seats.
Application
Where It Is Used
Lines with fibres, slurry or particles, and lines where flow has to be regulated.
- Pulp and paper
- Slurry and particle-laden media
- Chemical process lines
- Water treatment
ASSEMBLY HALL · WENZHOUDimensions

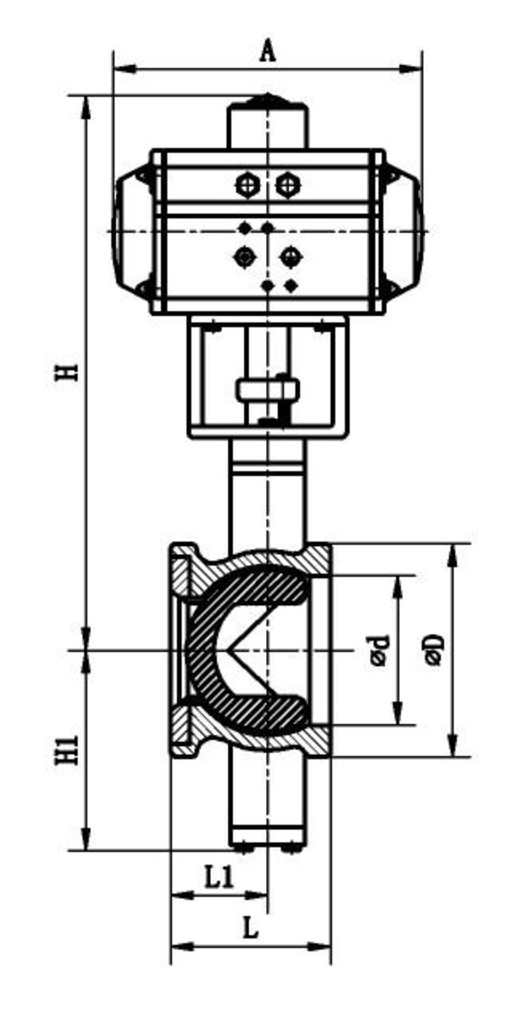

Dimensions (mm)
d = bore · D = body O.D. · L = face-to-face · L1 = half length · A = actuator width · H = height · H1 = centre to bottom.
Pneumatic VQ641F-16P/R
| DN | d | D | L | L1 | A | H | H1 | Pneumatic actuator |
|---|---|---|---|---|---|---|---|---|
| DN25 | 38 | 68 | 50 | 30 | 163 | 248 | 81 | AT63 |
| DN32 | 45 | 76 | 60 | 35 | 214 | 270 | 88 | AT75 |
| DN40 | 50 | 84 | 60 | 35 | 214 | 275 | 90 | AT75 |
| DN50 | 62 | 100 | 75 | 43 | 252 | 295 | 93 | AT88 |
| DN65 | 73 | 118 | 100 | 50 | 270 | 322 | 108 | AT100 |
| DN80 | 90 | 132 | 100 | 57 | 316 | 362 | 123 | AT115 |
| DN100 | 115 | 158 | 115 | 65 | 354 | 387 | 138 | AT125 |
| DN125 | 134 | 184 | 129 | 78 | 418 | 423 | 148 | AT145 |
| DN150 | 164 | 216 | 160 | 95 | 450 | 475 | 170 | AT160 |
| DN200 | 206 | 268 | 200 | 120 | 518 | 535 | 200 | AT190 |
| DN250 | 260 | 326 | 240 | 148 | 530 | 615 | 240 | AT210 |
Testing
Pressure Test on Every Valve
| Test | Pressure |
|---|---|
| Shell test (water) | Per rating |
| Seat test | Per rating |
Actual test pressures for each valve are on the test report.
SHELL & SEAT TEST
ACTUATED VALVESQuality records
A Test Report in Every Shipment
- Heat number of the body casting
- Materials of body, ball and stem
- Shell and seat test pressures
- Open/close check of the assembly
- Signed and stamped by our QC department
We welcome third-party inspection (e.g. SGS or BV), arranged and paid for by the buyer; inspectors get full access to our plant and test bench.
Download Sample Test Report (PDF)Options
Actuators & Accessories
- Solenoid valve
- Limit switch box with open/close indication
- Air filter regulator
- Valve positioner for flow regulation
- Manual override
Accessories are fitted to order. Tell us the control signal, voltage and air supply and we confirm the package with your quote.
Send us these 7 details for a fast quote
- Valve type and size
- Seat: PTFE or hard alloy
- Body material
- On-off or regulating; control signal
- Accessories (solenoid, limit switch, positioner)
- Media and temperature
- Quantity and destination port
Made by BAUTU
From Casting to Actuated Assembly
01 CASTING
02 MACHINING
03 ACTUATOR FITTING
04 PRESSURE TEST
ACTUATED VALVES · WENZHOUSee your valves before they ship
Book a live video call and we show your assemblies opening and closing on our bench before packing.
Book a Video TourFAQ
Frequently Asked Questions
When should I use a V-port ball valve?
Use it on media with fibres or solids, where the V-edge cuts through as the valve closes, and on lines where you need to regulate the flow. Fit a positioner when the valve has to hold intermediate positions.
PTFE or hard-alloy seat?
PTFE seats give tight shut-off on clean and moderately dirty media. Hard-alloy seats resist wear from abrasive particles and slurry. Tell us the media and we recommend the seat.
How do I install an actuated ball valve?
Before installation, run a seat leak test and a few open/close cycles without load: the valve must move smoothly with no sticking. Clean the bore, sealing faces and pipe flanges, and tighten the connection bolts evenly. The valve can be installed in any position; leave room for maintenance and manual operation.
What maintenance does the valve need?
Check the seals regularly and replace them when worn. Clean dirt and deposits from the valve without scratching the ball. Lubricate moving parts, and add a little lubricating oil inside the pneumatic cylinder about every 18 months. Always cut off the air and power supply before working on the valve.
What documents ship with the valve?
A product test report with the heat number of the body casting, materials and the pressure test results. We welcome third-party inspection (e.g. SGS or BV), arranged and paid for by the buyer.
What is the lead time?
Standard sizes ship in 15–20 days. Special actuators, voltages or accessories may take longer; we confirm the date with your quote.
