Electric 3-Piece Threaded Ball Valve — ½″ to 4″
Three-piece stainless steel ball valve with female threaded ends and an electric (motorized) actuator. AC 110V, 220V, 380V or DC 24V; on-off or modulating.
- Valve and actuator from one plant
- Pressure-tested before shipment
- Standard sizes ship in 15–20 days
An engineer replies within 24 hours. Send size, pressure, body material, actuator type and quantity.
Specifications
Technical Data
| Electric Q911F | |
|---|---|
| Size | ½″–4″ (DN15–DN100) |
| Nominal pressure | 0–4.0 MPa |
| Body | CF8 · CF8M |
| Valve standard | GB as standard; JIS or ANSI on request |
| Body material options | Body material can be changed to suit your media (e.g. 316L, or WCB carbon steel); tell us what you need |
| Seat | PTFE |
| Stem | 304 |
| Medium temperature | −20 °C to +180 °C |
| Ambient temperature | −20 °C to +60 °C |
| Power supply | AC 110V · AC 220V · AC 380V · DC 24V |
| Control | On-off, or modulating (4–20 mA control signal) |
| Power failure | Valve stays in its last position |
| Hazardous areas | Standard, or explosion-proof (Ex-marked electric actuator) |
Application
Where It Is Used
Small-bore lines controlled from a PLC or timer, without compressed air.
- Water treatment and irrigation
- HVAC and building services
- Skids and OEM equipment
- Chemical dosing (CF8M body)
ASSEMBLY HALL · WENZHOUDimensions

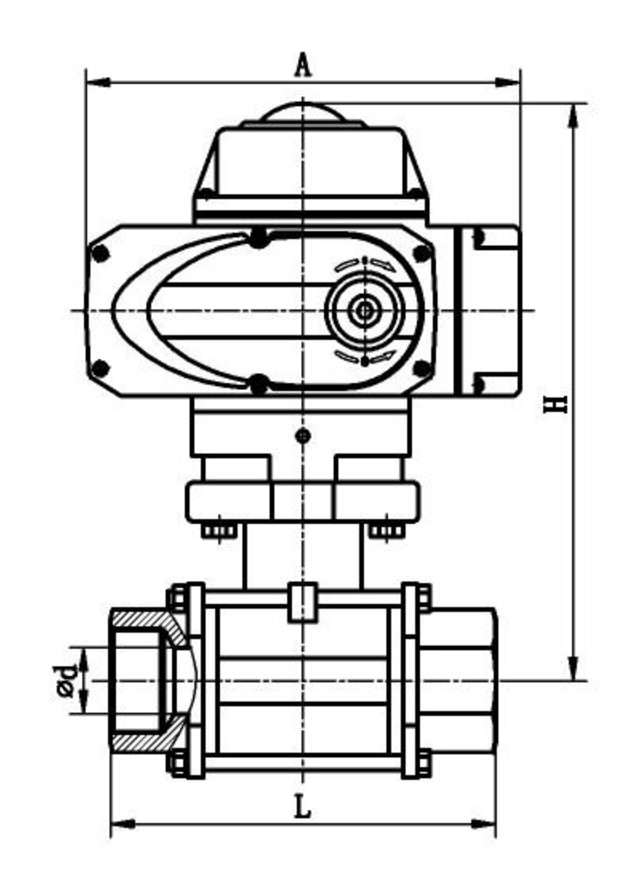

Dimensions (mm)
d = bore · L = length · A = actuator width · H = height.
Electric Q911F-16P/R
| Size | d | L | A | H | Electric actuator size |
|---|---|---|---|---|---|
| ½″ | 15 | 75 | 160 | 166 | 05 |
| ¾″ | 20 | 80 | 160 | 170 | 05 |
| 1″ | 25 | 90 | 160 | 180 | 05 |
| 1¼″ | 32 | 110 | 160 | 185 | 05 |
| 1½″ | 38 | 120 | 160 | 198 | 05 |
| 2″ | 50 | 140 | 196 | 237 | 10 |
| 2½″ | 65 | 185 | 196 | 252 | 10 |
| 3″ | 78 | 205 | 256 | 302 | 20 |
| 4″ | 98 | 240 | 256 | 320 | 20 |
Testing
Pressure Test on Every Valve
| Test | Pressure |
|---|---|
| Shell test (water) | Per rating |
| Seat test | Per rating |
Actual test pressures for each valve are on the test report.
SHELL & SEAT TEST
ACTUATED VALVESQuality records
A Test Report in Every Shipment
- Heat number of the body casting
- Materials of body, ball and stem
- Shell and seat test pressures
- Open/close check of the assembly
- Signed and stamped by our QC department
We welcome third-party inspection (e.g. SGS or BV), arranged and paid for by the buyer; inspectors get full access to our plant and test bench.
Download Sample Test Report (PDF)Options
Actuators & Accessories
- On-off or modulating electric actuator
- Power supply AC 110V, 220V, 380V or DC 24V
- Explosion-proof electric actuator for hazardous areas
- Actuator size matched to valve torque
- Valve to GB, JIS or ANSI standard; body material to suit your media
Tell us the voltage and control signal and we confirm the actuator with your quote.
Send us these 6 details for a fast quote
- Valve size and thread type (BSP / NPT)
- Valve standard (GB / JIS / ANSI) and body material
- Voltage (AC 110/220/380V or DC 24V)
- On-off or modulating; control signal; explosion-proof
- Media and temperature
- Quantity and destination port
Made by BAUTU
From Casting to Actuated Assembly
01 CASTING
02 MACHINING
03 ACTUATOR FITTING
04 PRESSURE TEST
ACTUATED VALVES · WENZHOUSee your valves before they ship
Book a live video call and we show your assemblies opening and closing on our bench before packing.
Book a Video TourFAQ
Frequently Asked Questions
Which voltages are available?
AC 110V, AC 220V, AC 380V and DC 24V. Tell us your supply and we fit the matching actuator.
On-off or modulating electric actuator?
An on-off actuator only opens and closes the valve. A modulating actuator positions the valve anywhere between open and closed according to a control signal, so it can regulate flow.
What happens if the power fails?
A standard electric actuator stays in its last position. If the valve must close on power failure, choose a pneumatic single-acting (spring-return) ball valve.
Do you supply explosion-proof versions?
Yes. Tell us the hazardous-area classification of your site and we fit an explosion-proof actuator and accessories.
Why choose a 3-piece ball valve?
The centre body is held between two end pieces by bolts. Open the bolts and the centre body swings out, so you can change the seats without cutting or unscrewing the pipe.
What documents ship with the valve?
A product test report with the heat number of the body casting, materials and the pressure test results. We welcome third-party inspection (e.g. SGS or BV), arranged and paid for by the buyer.
What is the lead time?
Standard sizes ship in 15–20 days. Special actuators, voltages or accessories may take longer; we confirm the date with your quote.
Can I get this valve to JIS or ANSI, or in another material?
Yes. GB is our standard build; we can also make the valve to JIS or ANSI and change the body material to suit your media. Tell us the standard, pressure class and material with your enquiry and we confirm the details with your quote.
