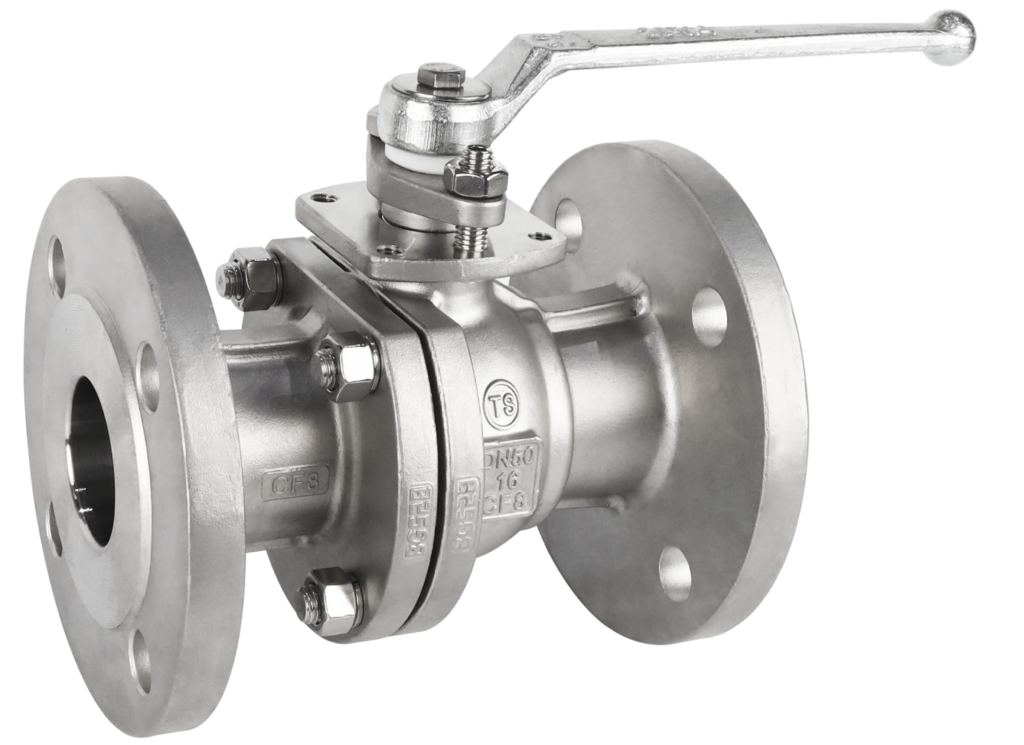

GB/T 12237 Manual Ball Valve — Lever Operated

MODEL Q41F · GB/T 12237 · HAND LEVER

Flanged floating ball valve to the Chinese national standard GB/T 12237, opened and closed by a quarter-turn hand lever. PN16, PN25 or PN40, DN15 to DN200, WCB, CF8 or CF3M body with a PTFE seat.

SizeDN15–DN200

RatingPN16 · PN25 · PN40

BodyWCB · CF8 · CF3M

SeatPTFE / RPTFE

FlangesHG/T 20592

OperationHand lever

Bodies cast in our own foundry, traceable to the heat number
Every valve shell and seat tested per GB/T 26480, test report in every shipment
Standard sizes ship in 15–20 days

Request a Quote WhatsApp Us

An engineer replies within 24 hours. Send size, PN, material and quantity. Download GA drawing (PDF) →

Specifications Materials Dimensions Pressure rating Testing How to order Video FAQ

Specifications

Technical Data

Design standard	GB/T 12237
Face-to-face	GB/T 12221
Flanges	HG/T 20592, raised face
Size range	DN15–DN200
Pressure rating	PN16 / PN25 / PN40
Body material	WCB (A216) · CF8 (A351) · CF3M (A351)
Ball	SS304 / SS316
Seat	PTFE (standard) · RPTFE (option)
Temperature	−29 °C to +150 °C (PTFE) · up to +180 °C (RPTFE)
Construction	Two-piece body, floating ball, anti-static device
Operation	Quarter-turn hand lever
Testing	GB/T 26480 — every valve

Application

Where It Is Used

For on/off lines built to Chinese standards, where a simple manual valve does the job.

Projects and plants designed to GB standards
Water supply and treatment
Oil, gas and general industrial piping
Chemical lines (CF3M body)
Replacement valves for GB-standard equipment

Ball valve assembly hall at the BAUTU plant in Wenzhou

ASSEMBLY HALL · WENZHOU

Construction

Parts & Materials

From our PN16 manual ball valve general assembly drawing. Every body casting is marked with size, rating and material.

Part	WCB body	CF8 body	CF3M body
Body / Bonnet	A216 WCB	A351 CF8	A351 CF3M
Ball	SS304	SS304	SS316
Stem	A182 F304	A182 F304	A182 F316
Seat	PTFE	PTFE	PTFE
Body gasket	PTFE	PTFE	PTFE
Stem packing	PTFE	PTFE	PTFE
Thrust washer	PTFE	PTFE	PTFE
O-ring	FPM	FPM	FPM
Anti-static spring	17-7PH	17-7PH	17-7PH
Studs / Nuts	A193 B7 / A194 2H	A193 B8 / A194 8	A193 B8 / A194 8
Gland	A351 CF8	A351 CF8	A351 CF8
Stop plate	A276 304	A276 304	A276 304
Lever	A216 WCB	A216 WCB	A216 WCB

Dimensions

Dimensions (mm)

PN16

DN	NPS	L	D	D1	D2	T	f	n-Ød	M
15	½″	130	95	65	45	16	2	4-Ø14	145
20	¾″	130	105	75	58	18	2	4-Ø14	145
25	1″	140	115	85	68	18	2	4-Ø14	160
32	1¼″	165	140	100	78	18	2	4-Ø18	160
40	1½″	165	150	110	88	18	2	4-Ø18	230
50	2″	203	165	125	102	18	2	4-Ø18	230
65	2½″	222	185	145	122	18	2	8-Ø18	250
80	3″	241	200	160	138	20	2	8-Ø18	270
100	4″	305	220	180	158	20	2	8-Ø18	310
125	5″	356	250	210	188	22	2	8-Ø18	450
150	6″	394	285	240	212	22	2	8-Ø22	550
200	8″	457	340	295	268	24	2	12-Ø22	650

PN25

DN	NPS	L	D	D1	D2	T	f	n-Ød	M
15	½″	140	95	65	45	16	2	4-Ø14	145
20	¾″	152	105	75	58	18	2	4-Ø14	145
25	1″	165	115	85	68	18	2	4-Ø14	160
32	1¼″	175	140	100	78	18	2	4-Ø18	160
40	1½″	190	150	110	88	18	2	4-Ø18	230
50	2″	216	165	125	102	20	2	4-Ø18	230
65	2½″	241	185	145	122	22	2	8-Ø18	250
80	3″	283	200	160	138	24	2	8-Ø18	270
100	4″	305	235	190	162	24	2	8-Ø22	310
125	5″	381	270	220	188	26	2	8-Ø26	450
150	6″	403	300	250	218	28	2	8-Ø26	550
200	8″	502	360	310	278	30	2	12-Ø26	650

PN40

DN	NPS	L	D	D1	D2	T	f	n-Ød	M
15	½″	140	95	65	45	16	2	4-Ø14	145
20	¾″	152	105	75	58	18	2	4-Ø14	145
25	1″	165	115	85	68	18	2	4-Ø14	160
32	1¼″	178	140	100	78	18	2	4-Ø18	160
40	1½″	190	150	110	88	18	2	4-Ø18	230
50	2″	216	165	125	102	20	2	4-Ø18	230
65	2½″	241	185	145	122	22	2	8-Ø18	250
80	3″	283	200	160	138	24	2	8-Ø18	270
100	4″	305	235	190	162	24	2	8-Ø22	310
125	5″	381	270	220	188	26	2	8-Ø26	450
150	6″	403	300	250	218	28	2	8-Ø26	550
200	8″	502	375	320	285	34	2	12-Ø30	650

From our PN16, PN25 and PN40 general assembly drawings. L = face-to-face (GB/T 12221) · D = flange O.D. · D1 = bolt circle · D2 = raised face O.D. · T = flange thickness · f = raised face height · n-Ød = bolt holes · M = lever length. Flanges to HG/T 20592.

PN16 GA Drawing (PDF)PN25 GA Drawing (PDF)PN40 GA Drawing (PDF)

Face-to-face length of a ball valve checked with a caliper

FACE-TO-FACE CHECK

Quality certificate tag on a BAUTU ball valve

QC TAG ON EVERY VALVE

Checked before packing

Face-to-face and flange dimensions are checked with calipers against GB/T 12221 and HG/T 20592 before packing. Each valve gets a QC tag with model, size, rating and inspector.

Pressure rating

Pressure Rating

Rating	Nominal pressure (MPa)
PN16	1.6
PN25	2.5
PN40	4.0

Nominal pressure at room temperature. The seat sets the temperature limit: +150 °C with PTFE, +180 °C with RPTFE.

Testing

Pressure Test on Every Valve

Test	PN16	PN25	PN40
Shell test (water)	2.4 MPa	3.75 MPa	6.0 MPa
Seat test (water)	1.76 MPa	2.8 MPa	4.4 MPa
Seat test (air)	0.6 MPa	0.6 MPa	0.6 MPa

Tested per GB/T 26480. Test pressures from our PN16, PN25 and PN40 GA drawings; actual values for each valve are on the test report.

Checking stainless steel ball valve bodies with a handheld spectrometer

MATERIAL CHECK · SPECTROMETER

▶ PRESSURE TEST VIDEO

Quality records

Mill Test Certificate (EN 10204 3.1) in Every Shipment

Heat number of the body casting
Chemical composition against ASTM limits
Mechanical properties: tensile, yield, elongation
Shell and seat test pressure and hold time per GB/T 26480
Signed and stamped by our QC department

BAUTU ball valve mill test certificate, EN 10204 type 3.1 sample with heat number, chemical composition and mechanical properties

SAMPLE MTC · EN 10204 3.1 · CLICK TO OPEN

We welcome third-party inspection (e.g. SGS or BV), arranged and paid for by the buyer; inspectors get full access to our plant and test bench.

Download Sample MTC (PDF)

How to order

Model Code Q41F-16C

QBall valve

4Flanged ends

1Floating ball, straight-through

FPTFE seat

16PN16

CBody material (C = WCB)

The model code is printed on the nameplate and the QC tag. We confirm the full code on the order confirmation.

Send us these 8 details for a fast quote

Size (DN)
Pressure rating (PN16 / 25 / 40)
Body material (WCB / CF8 / CF3M)
Seat (PTFE / RPTFE)
Media and temperature
Quantity
Marking or nameplate needs
Destination port

Request a Quote WhatsApp Us

Made in one plant

From Machining to Crate in Wenzhou

Machining a stainless steel ball valve body

01 MACHINING

Drilling the flange bolt holes of a ball valve body

02 DRILLING

Tightening body bolts during ball valve assembly

03 ASSEMBLY

Ball valve clamped in the API 598 hydraulic test press

04 API 598 TEST

See the valve before you order

Real footage of the valve from our plant. Want to see your own order? Book a live video call and we show your valves on the test bench.

Book a Video Tour

Export crates ready to ship in front of the BAUTU plant in Wenzhou

CRATED AT OUR PLANT

Packing & delivery

Packed for Sea Freight

Flange faces capped to protect the raised face
Each valve bagged; the order packed in plywood cases
MTC (EN 10204 3.1) inside every case
Standard sizes ship in 15–20 days

FAQ

Frequently Asked Questions

Is this valve manually operated, and can it be automated later?

Yes, it ships with a quarter-turn hand lever. An actuator can be added later with a bracket and coupling. If you plan to automate from the start, choose a high-platform valve with an ISO 5211 pad, such as our API 608 high-platform ball valve.

What is GB/T 12237?

It is the Chinese national standard for steel ball valves with flanged and welded ends. Our GB/T 12237 valves use GB/T 12221 face-to-face lengths and HG/T 20592 flanges, measured in DN sizes and PN ratings.

Which body material should I choose: WCB, CF8 or CF3M?

WCB carbon steel for non-corrosive water, oil and gas. CF8 (cast 304) for general corrosion resistance. CF3M (cast 316L) for chlorides, seawater and chemical service.

What temperature can the seat take?

Standard PTFE seats are rated −29 °C to +150 °C. RPTFE seats are available for service up to +180 °C. For hotter media, use our metal-seated ball valve.

What documents ship with the valve?

A product test report with the heat number of the body casting, chemical composition, mechanical properties and the pressure test results. We welcome third-party inspection (e.g. SGS or BV), arranged and paid for by the buyer.

What is the lead time?

Standard sizes ship in 15–20 days from stock. Special materials or options may take longer; we confirm the delivery date with your quote.
