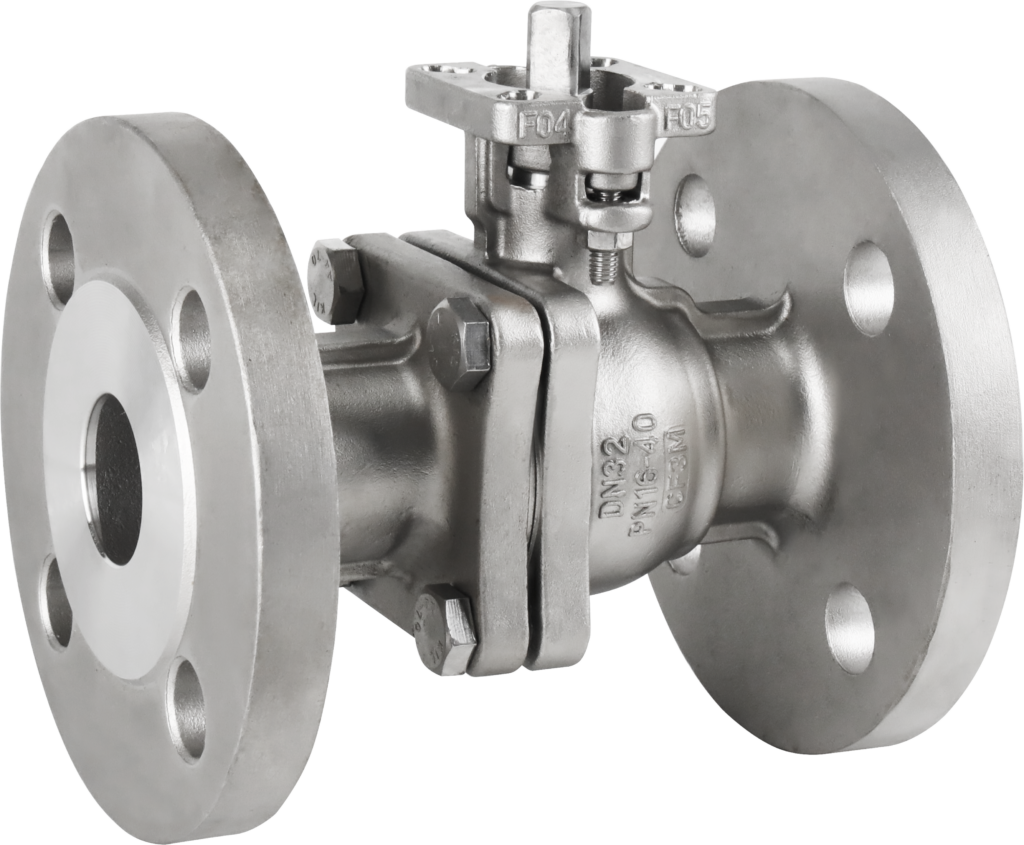

BAUTU JIS B2011 10K high-platform ball valve, flanged, with ISO 5211 mounting pad

SCS13 JIS 10K ball valve body with cast 65A-10K marking

SCS16 JIS 10K ball valve body with cast 125A 10K marking

Soft-seated ball valve · JIS standard · Made in Wenzhou

JIS B2011 High-Platform Ball Valve — ISO 5211 Direct Mount

MODEL GQ41F-10K · JIS B2011 · ISO 5211 PAD

Flanged floating ball valve built to JIS B2011 for 10K and 20K piping, with JIS flanges and a built-in ISO 5211 pad for direct actuator mounting. PTFE seat, stainless SCS13 or SCS16 body.

Size15A–200A

Rating10K / 20K

BodySCS13 · SCS16

SeatPTFE / RPTFE

FlangesJIS 10K / 20K

TopISO 5211 pad

Made for Japanese-standard piping: JIS face-to-face and flanges
Every valve shell and seat tested per API 598, test report in every shipment
Standard sizes ship in 15–20 days

Request a Quote WhatsApp Us

An engineer replies within 24 hours. Send size, 10K or 20K, material and quantity. Download GA drawing (PDF) →

Specifications Materials Dimensions Pressure rating Testing How to order Video FAQ

Specifications

Technical Data

Design standard	JIS B2011
Flanges	JIS 10K / 20K, raised face
Size range	15A–200A (DN15–DN200)
Pressure rating	10K / 20K
Body material	SCS13 (≈ CF8, 304) · SCS16 (≈ CF3M, 316L)
Ball	SUS304 / SUS316
Seat	PTFE (standard) · RPTFE (option)
Temperature	−29 °C to +150 °C (PTFE) · up to +180 °C (RPTFE)
Construction	Two-piece body, floating ball, anti-static device
Top flange	ISO 5211 mounting pad for direct actuator mounting
Operation	Hand lever, pneumatic or electric actuator
Testing	API 598 — every valve

Application

Where It Is Used

For plants and ships built to Japanese standards, and for replacing JIS valves without changing the pipework.

Replacement valves for JIS-standard plants in Japan and Southeast Asia
Shipbuilding and marine piping
Water treatment and utilities
Chemical lines (SCS16 body)
Automated on/off service via the ISO 5211 pad

Ball valve assembly hall at the BAUTU plant in Wenzhou

ASSEMBLY HALL · WENZHOU

Construction

Parts & Materials

From our GQ41F-10K general assembly drawing. The SCS16 (CF3M) version uses a 316 ball; the GA drawing for your order lists every part.

Part	SCS13 (CF8) body
Body	CF8 (SCS13)
Bonnet	CF8 (SCS13)
Ball	SS304
Seat	PTFE
Body gasket	304 + flexible graphite
Stem	304
Thrust washer	PTFE
Stem packing	PTFE
Gland	CF8
O-ring	FKM
Anti-static spring	17-4PH
Studs / Nuts	B8 / 8
Stop plate / Retaining ring	Stainless steel
Lever	WCB

Dimensions

Dimensions — 10K (mm)

Size	NPS	L	D	C	G	t	f	n-Ød	Stem F×F	ISO 5211
15A	½″	108	95	70	51	12	1	4-15	9×9	F03/F05
20A	¾″	117	100	75	56	14	1	4-15	9×9	F03/F05
25A	1″	127	125	90	67	14	1	4-19	11×11	F04/F05
32A	1¼″	140	135	100	76	16	2	4-19	11×11	F04/F05
40A	1½″	165	140	105	81	16	2	4-19	14×14	F05/F07
50A	2″	178	155	120	96	16	2	4-19	14×14	F05/F07
65A	2½″	190	175	140	116	18	2	4-19	17×17	F07/F10
80A	3″	203	185	150	126	18	2	8-19	17×17	F07/F10
100A	4″	229	210	175	151	18	2	8-19	19×19	F07/F10
125A	5″	356	250	210	182	20	2	8-23	22×22	F10/F12
150A	6″	394	280	240	212	22	2	8-23	27×27	F10/F12
200A	8″	457	330	290	262	22	2	12-23	27×27	F12/F14/F16

From our GQ41F-10K general assembly drawing. L = face-to-face · D = flange O.D. · C = bolt circle · G = raised face O.D. · t = flange thickness · f = raised face height · n-Ød = bolt holes · Stem F×F = stem drive square · ISO 5211 = actuator mounting flange. 20K dimensions on request.

Download GA Drawing (PDF)

Face-to-face length of a ball valve checked with a caliper

FACE-TO-FACE CHECK

Quality certificate tag on a BAUTU ball valve

QC TAG ON EVERY VALVE

Checked before packing

Face-to-face and flange dimensions are checked with calipers against the JIS drawing before packing. Each valve gets a QC tag with model, size, rating and inspector.

Pressure rating

Pressure Rating

Rating	Max. pressure (MPa)
10K	1.4
20K	3.4

Pressure–temperature limits per JIS B2220 for the flange rating. The seat sets the temperature limit: +150 °C with PTFE, +180 °C with RPTFE.

Testing

API 598 Test on Every Valve

Test	Pressure
Shell test (water), 10K	3.0 MPa
Seat test (water), 10K	2.2 MPa
Seat test (air)	0.6 MPa

Test pressures from our GQ41F-10K drawing. 20K test pressures are shown on the test report.

Checking stainless steel ball valve bodies with a handheld spectrometer

MATERIAL CHECK · SPECTROMETER

▶ PRESSURE TEST VIDEO

Quality records

Mill Test Certificate (EN 10204 3.1) in Every Shipment

Heat number of the body casting
Chemical composition against ASTM limits
Mechanical properties: tensile, yield, elongation
Shell and seat test pressure and hold time per API 598
Signed and stamped by our QC department

BAUTU ball valve mill test certificate, EN 10204 type 3.1 sample with heat number, chemical composition and mechanical properties

SAMPLE MTC · EN 10204 3.1 · CLICK TO OPEN

We welcome third-party inspection (e.g. SGS or BV), arranged and paid for by the buyer; inspectors get full access to our plant and test bench.

Download Sample MTC (PDF)

How to order

Model Code GQ41F-10K

GHigh platform (ISO 5211 pad)

QBall valve

4Flanged ends

1Floating ball, straight-through

FPTFE seat

10KJIS rating

The model code is printed on the nameplate and the QC tag. We confirm the full code on the order confirmation.

Send us these 8 details for a fast quote

Size (A or DN)
Rating (10K / 20K)
Body material (SCS13 / SCS16)
Seat (PTFE / RPTFE)
Lever, or actuator type
Media and temperature
Quantity
Destination port

Request a Quote WhatsApp Us

Made in one plant

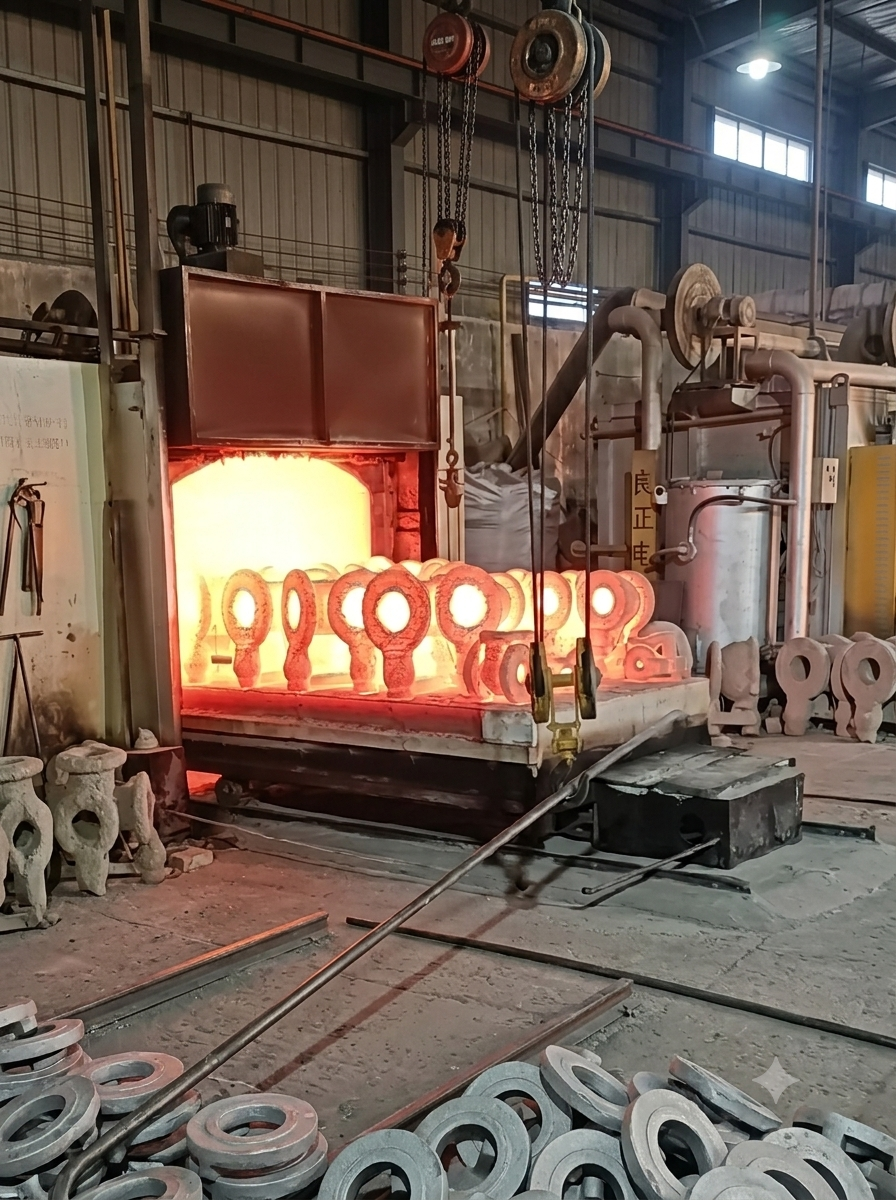

From Machining to Crate in Wenzhou

Machining a stainless steel ball valve body

01 MACHINING

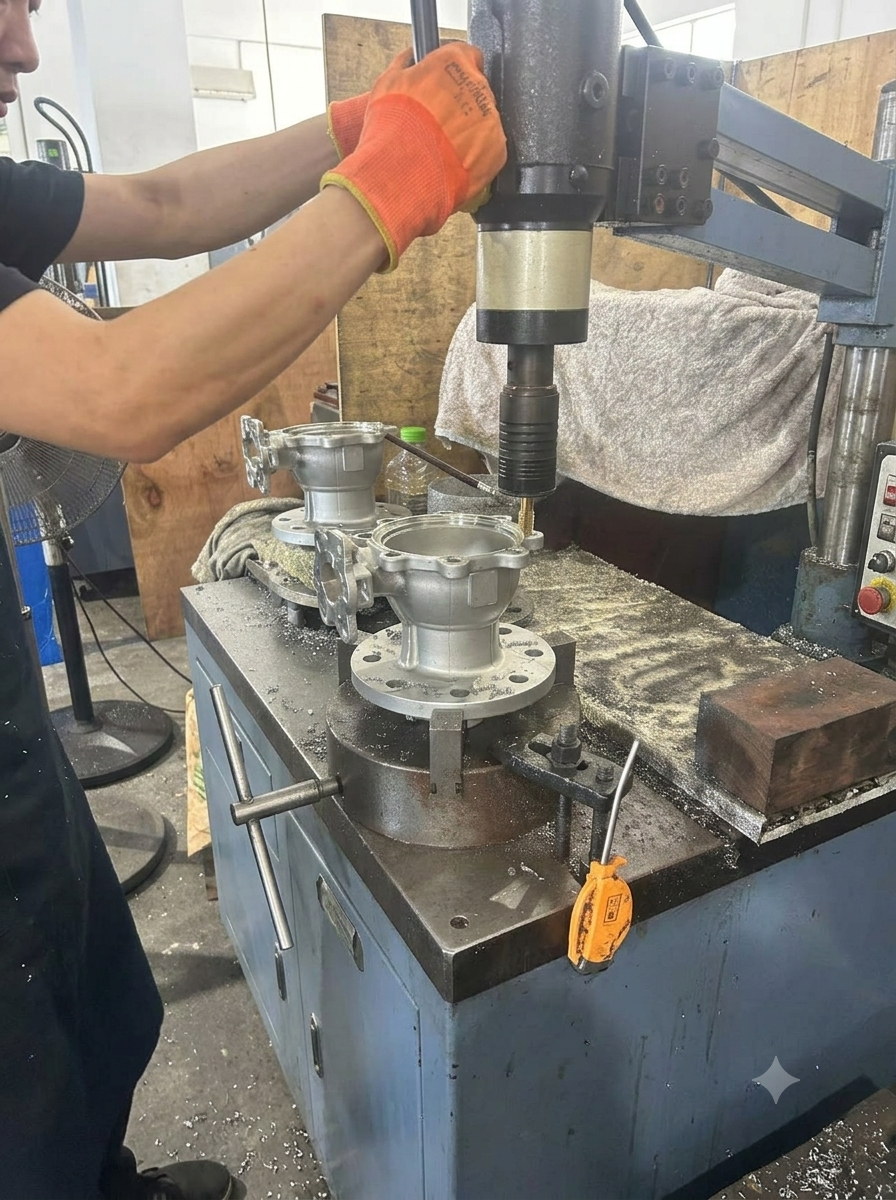

Drilling the flange bolt holes of a ball valve body

02 DRILLING

Tightening body bolts during ball valve assembly

03 ASSEMBLY

Ball valve clamped in the API 598 hydraulic test press

04 API 598 TEST

See the valve before you order

Real footage of the valve from our plant. Want to see your own order? Book a live video call and we show your valves on the test bench.

Book a Video Tour

Export crates ready to ship in front of the BAUTU plant in Wenzhou

CRATED AT OUR PLANT

Packing & delivery

Packed for Sea Freight

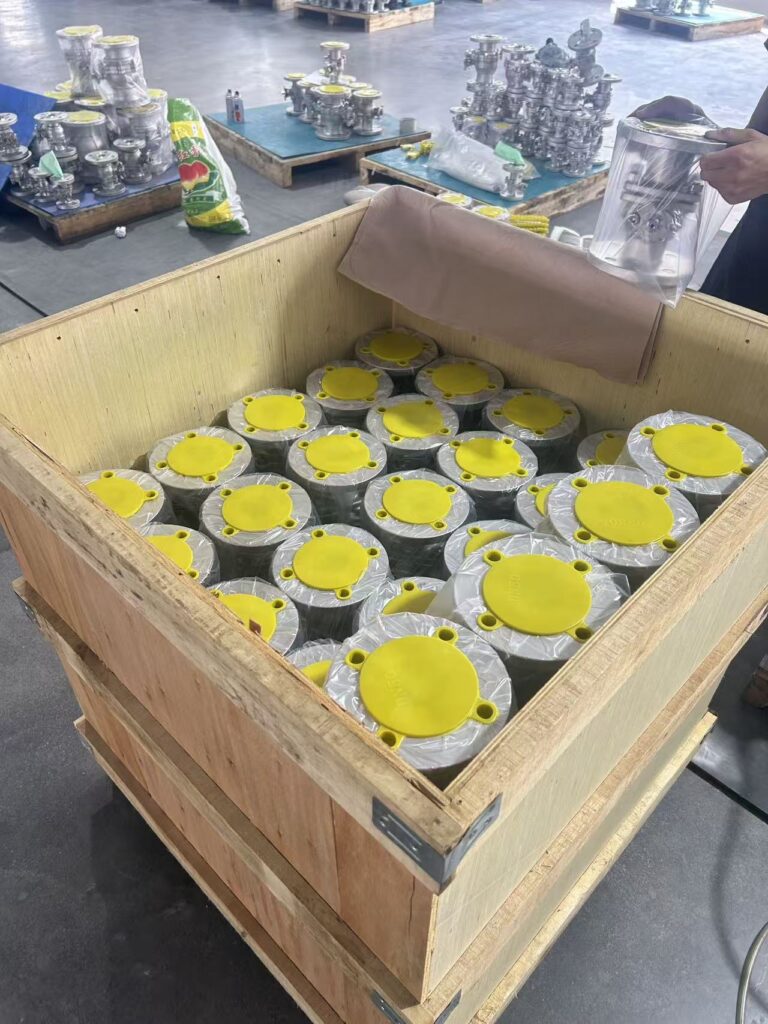

Flange faces capped to protect the raised face
Each valve bagged; the order packed in plywood cases
MTC (EN 10204 3.1) inside every case
Standard sizes ship in 15–20 days

FAQ

Frequently Asked Questions

Is this valve interchangeable with Japanese-made JIS ball valves?

It is built to JIS B2011 with JIS flanges, so face-to-face length and flange drilling match JIS valves of the same size and rating. Send us the old valve's tag or drawing and we confirm before you order.

What do SCS13 and SCS16 mean?

They are Japanese cast stainless steel grades. SCS13 is close to CF8 (304) and SCS16 is close to CF3M (316L). Choose SCS16 for chlorides, seawater and chemical service.

Can I fit an actuator?

Yes. The top of the valve is an ISO 5211 mounting pad, so a pneumatic or electric actuator with the matching flange bolts on directly.

What temperature can the seat take?

Standard PTFE seats are rated −29 °C to +150 °C. RPTFE seats are available for service up to +180 °C. For hotter media, use our metal-seated ball valve.

What documents ship with the valve?

A product test report with the heat number of the body casting, chemical composition, mechanical properties and the pressure test results. We welcome third-party inspection (e.g. SGS or BV), arranged and paid for by the buyer.

What is the lead time?

Standard sizes ship in 15–20 days from stock. Special materials or options may take longer; we confirm the delivery date with your quote.
