2-Piece Threaded Ball Valve (Q11F)
2-PIECE · FEMALE THREAD · SS304 / SS316 · PTFE SEAT · FLOATING BALL
The Q11F 2-piece threaded ball valve is a compact, economical
floating-ball valve for water, oil, gas/air, mild alkalis, acids,
biodiesel, fuels, and alcohols. It ensures tight zero-leakage
sealing and durability under frequent operation. Available in 11
sizes from DN8 to DN100 (1/4″–4″), with female (internal)
threaded ends, PTFE seats and seals, and full SS304 or SS316
wetted parts.
| Q11F · 1000 WOG · DN8–DN100 (¼"–4") | |
|---|---|
| Model Code | Q11F (Q=ball valve · 1=threaded · 1=floating ball · F=PTFE seat) |
| Body Type | 2-Piece — main body + screwed end cap, female (internal) thread |
| Size Range | DN8 – DN100 (1/4" – 4") — 11 sizes |
| Body Material | SS304 (CF8) / SS316 (CF8M) |
| Seat / Seal Material | PTFE |
Sales team respronds within 24 hours
— Full Specifications
2-Piece Threaded Ball Valve (Q11F) - Parameter Table
| PARAMETER | SPECIFICATION |
|---|---|
| Model | Q11F-1000/PSI |
| Model Code | Q11F (Q=ball valve · 1=threaded · 1=floating ball · F=PTFE seat) |
| Body Type | 2-Piece — main body + screwed end cap, female (internal) thread |
| Size Range | DN8 – DN100 (1/4" – 4") — 11 sizes |
| Available Sizes | DN8 (1/4") · DN10 (3/8") · DN15 (1/2") · DN20 (3/4") · DN25 (1") · DN32 (1-1/4") · DN40 (1-1/2") · DN50 (2") · DN65 (2-1/2") · DN80 (3") · DN100 (4") |
| Body Material | SS304 (CF8) / SS316 (CF8M) |
| Seat / Seal Material | PTFE |
| Working Temperature | -20 °C to +180 °C |
| Applicable Media | Water, oil, gas/air, mild alkalis & acids, biodiesel, fuels, alcohols |
| Pressure Rating | 1000 WOG (PN63 / 6.9 MPa) |
| Ball Material | SS304 / SS316 — mirror polished |
| Stem Material | SS304 / SS316 — blow-out proof design |
| End Connection | Female thread — NPT (ASME B1.20.1) / BSPT (ISO 7-1) / BSPP (ISO 228) |
| Bore Type | Standard Bore (Reduced Port) |
| Operation | Manual lever, quarter-turn — lockable handle option |
| Leakage Class | ANSI / FCI 70-2 Class VI — bubble-tight |
| Anti-Static Device | Standard — stem-to-body conductive spring |
| Design / Test Standard | GB Q11F series · ISO 17292 / MSS SP-110 · tested per API 598 |
Our Production Process
1. Casting

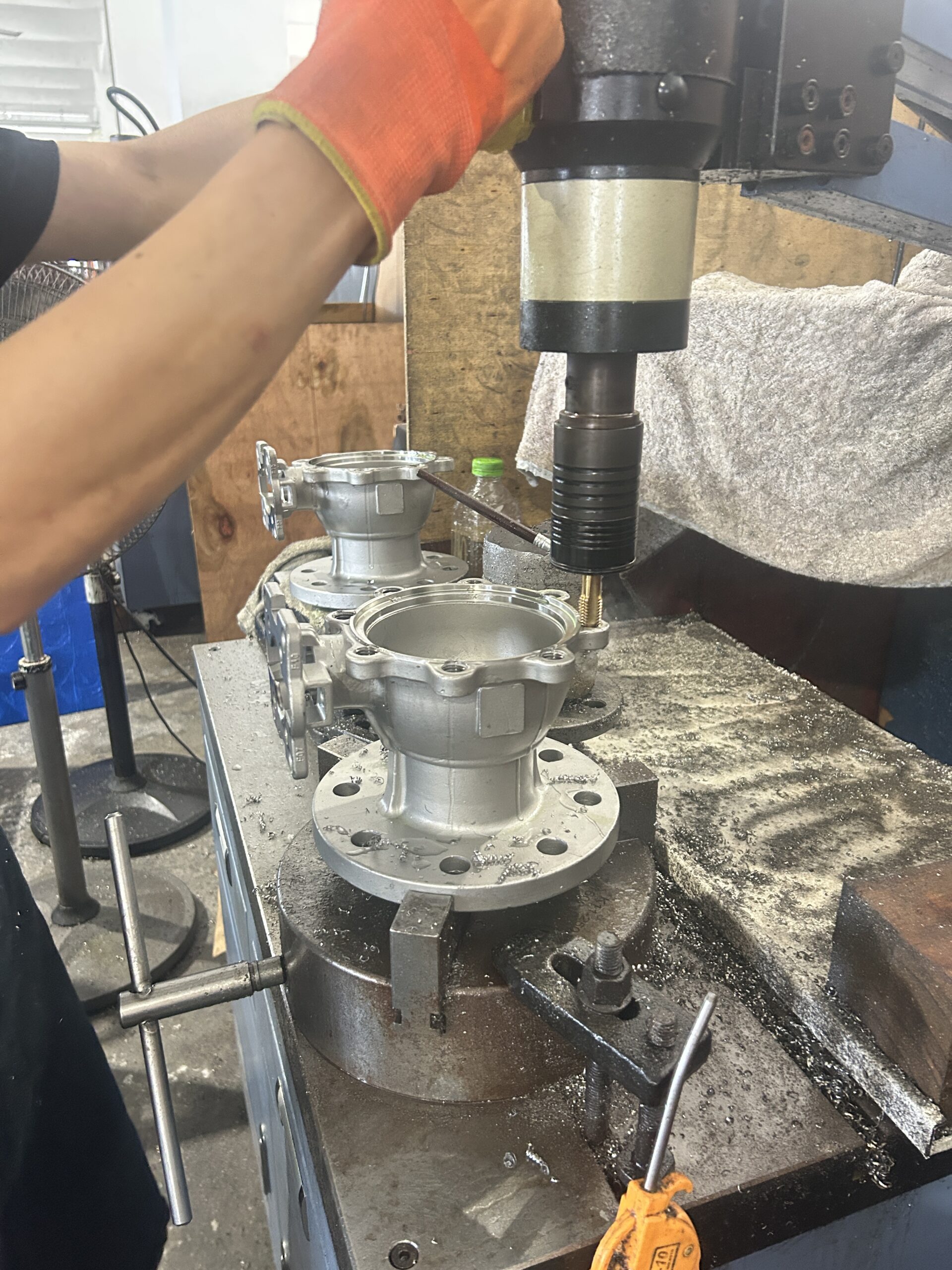

2. Machining
3. Testing
4. Loading
Inquiry Form - Quick Access
· Product documentation
Download Bautu Valve Documentation
Free · Instant
This Product Spec Sheet
Single-page datasheet for 2-Piece Threaded Ball Valve (Q11F).
- Full parameter table
- Dimensional drawing
- Materials & standards list
- Ordering code guide
Full Catalog
Complete Product Catalog
— WHY bAUTU
Why Specify This Valve from Bautu
Compact 2-Piece Q11F Floating-Ball Body
The Q11F 2-piece design — a main body plus a screwed end cap with female threaded ends — keeps the valve compact and economical, ideal for high-volume OEM and small-bore process pipework. The floating ball is supported by the stem and presses against the downstream PTFE seat under line pressure for a tight seal. Note: unlike a 3-piece valve, the body cannot be swung out of the line for servicing — choose the 3-piece Q11F if in-line maintenance is required.
Full Stainless Wetted Parts + PTFE Seats
Every wetted component — body, ball, stem — is SS304 or SS316. PTFE seats and seals deliver bubble-tight zero leakage shut-off and broad chemical compatibility, suitable for water, fuels, biodiesel, alcohols, and mild acids / alkalis. A blow-out-proof stem and anti-static device add safety for flammable-media service. Eleven sizes cover DN8 to DN100.
— KEY FEATURES
— FAQ
Frequently Asked Questions
What does "2PC" mean in a 2-piece threaded ball valve?
"2PC" refers to the two-piece body construction of the valve — the body is assembled from two separate machined pieces bolted together, with the ball and seats installed inside during assembly. This design is compact, lightweight, and cost-effective, making it the most widely used configuration for small-bore threaded ball valves. The two-piece body allows the valve internals to be accessed for inspection or seat replacement by disassembling the two halves, though the valve must be removed from the pipeline to do so.
What thread standards are available, and how do I specify NPT vs BSP?
Bautu's 2PC threaded ball valves are available in both NPT (National Pipe Thread) and BSP (British Standard Pipe) thread forms. NPT is the standard in North America — it uses a tapered thread that seals on the thread form itself with thread sealant (PTFE tape). BSP is standard in Europe, Asia, Australia, and the Middle East — available as BSPT (tapered, seals on thread) or BSPP (parallel, requires a sealing face or O-ring). When placing an order, always specify your required thread standard and pipe size (e.g. DN15 NPT ½" or DN25 BSPP 1") to ensure correct fitment.
What is the standard lead time, and what custom options are available?
Standard 2PC threaded ball valves are delivered in 2–3 weeks from order confirmation, with bulk stock items available for faster dispatch. Bautu supports custom configurations including stainless steel (SS304, SS316), brass, and carbon steel body materials, full-bore or reduced-bore options, PTFE or RPTFE seats, and locking handle devices for tamper-proof installations. Large quantity OEM orders with custom packaging and branding are also available. Submit your size, material, thread standard, and quantity for a competitive quotation within 24 hours.
